1
Engine displacement
400
2
Year
1997
3
Trim
xplorer-400l-w97cc38c
4
Parts Catalog

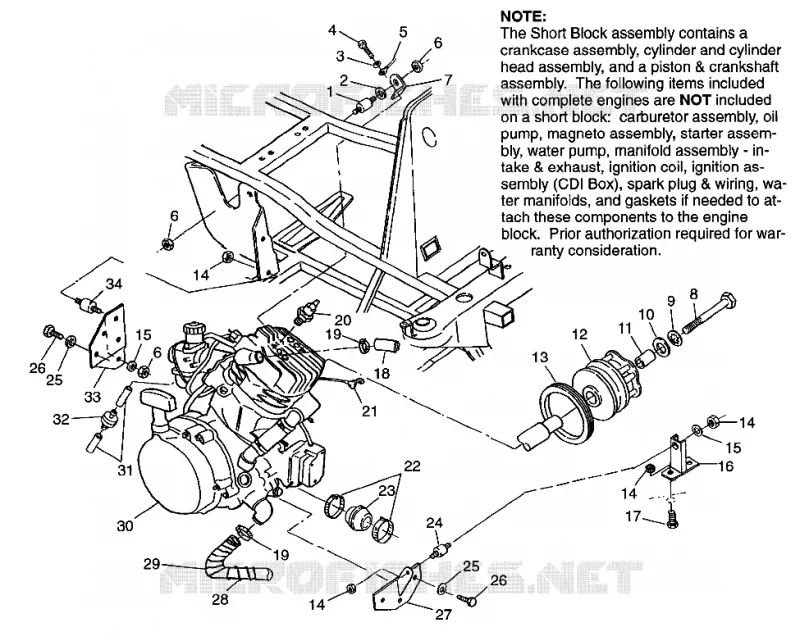

ENGINE MOUNTING XPLORER 400L W97CC38C (4939753975A010)
5
Parts Diagram
Parts Catalog
CABIN XPLORER 400L W97CC38C (4939753975A005)
by
COOLING SYSTEM XPLORER 400L W97CC38C (4939753975A011)
ENGINE MOUNTING XPLORER 400L W97CC38C (4939753975A010)
1
2
3
4
5
6
6
6
7
8
9
10
11
13
13
14
14
14
14
15
15
16
17
18
19
19
20
21
22
23
24
25
25
26
26
27
28
29
30
31
32
33
34
1
MT. RUBBER ENG.
3110038
Not Available
2
INSULATOR MOTOR MT.
5430802
$52,49 Unit Price incl. VAT
3
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
4
BOLT(10)
7515321
Not Available
5
CABLE GND-ENGINE
4010132
Not Available
6
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
7
MOUNT ENG TOP
5241801067
Not Available
8
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
9
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
10
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
11
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
Nut
7542403
Not Available
15
WASHER
7555806
$1,56 Unit Price incl. VAT
16
MOUNT ENG LOW BLK
1040532067
Not Available
17
BOLT(10) [CALIPER MOUNTING]
7512457
$7,34 Unit Price incl. VAT
18
HOSE ENG UPPER
5410570
$89,24 Unit Price incl. VAT
19
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
20
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
21
CABLE SOL/START DBLBOOT
4010129
Not Available
22
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
23
BOOT CLUTCH INTAKE(400)
5410883
$12,80 Unit Price incl. VAT
24
MOUNT MOTOR
3110026
$73,49 Unit Price incl. VAT
25
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
26
SCREW
7512490
$7,34 Unit Price incl. VAT
27
MOUNT ENGINE
1040231067
Not Available
28
SPRING HOSE RETAINER
7041079
$7,97 Unit Price incl. VAT
29
HOSE LOWER ENGINE
5411173
$178,49 Unit Price incl. VAT
30
ENG.(S.B.)EC38PLE-05 [No Longer Available] (EC38PLE05)
3085234
Not Available
31
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
32
CHECKVALVE VENT Substituted by 7051011
7052047
Not Available
33
MOUNT REAR MOTOR BLK.
5240542067
Not Available
34
MOUNT RUBBER ENG.
3110042
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
