1
Engine displacement
800
2
Year
2013
3
Trim
RZR 800 EFI - R13VH76AC/AD/AN/AS/EAI
4
Parts Catalog

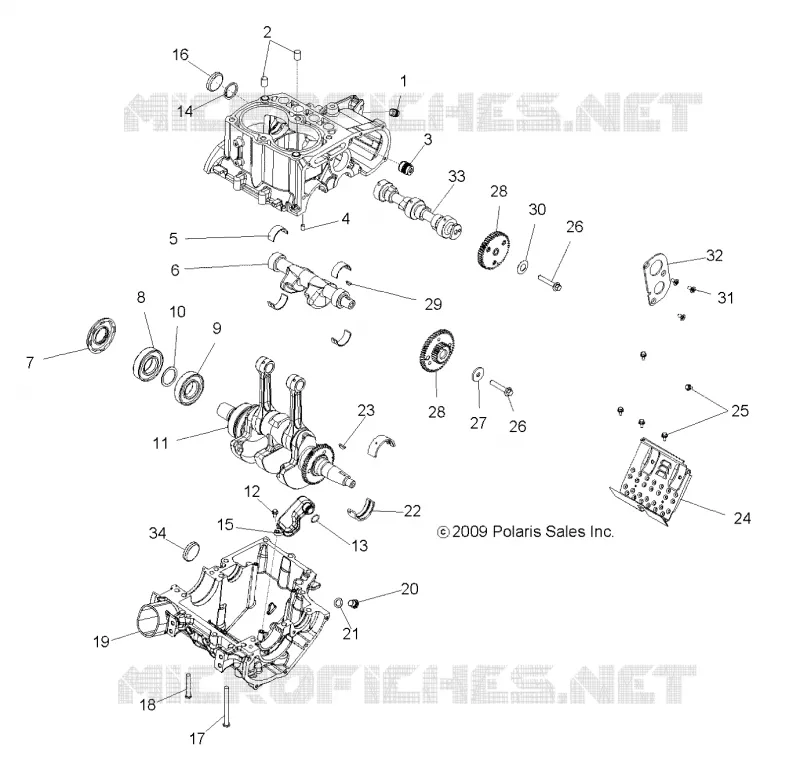

CRANKCASE AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
SENSORS
by
CYLINDER HEAD AND VALVES
CRANKCASE AND CRANKSHAFT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
28
29
30
31
32
33
33
34
1
PLUG EXPANSION 9MM
7051531
$13,64 Unit Price incl. VAT
2
DOWEL
7661175
$10,49 Unit Price incl. VAT
3
PLUG EXPANSION 13MM
7052288
Not Available
4
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
5
BEARING
5132753
Not Available
6
Shaft Balance [Built 9/06/10 and After]
5137337
$346,49 Unit Price incl. VAT
7
SEAL FLANGE
5412676
$73,49 Unit Price incl. VAT
8
BEARING BALL
3514361
3585503
$54,59 Unit Price incl. VAT
9
BEARING BALL
3514318
$74,54 Unit Price incl. VAT
10
BUSHING
7556194
$7,34 Unit Price incl. VAT
11
KIT CRANKSHAFT [INCL. 7 10-12]
2203068
$2 504,24 Unit Price incl. VAT
12
SCR-HXFL-M5X0.8X14 18-8
7516603
$19,94 Unit Price incl. VAT
13
O-Ring
5413013
$3,66 Unit Price incl. VAT
14
RING RETAINING
7710512
$7,34 Unit Price incl. VAT
15
Asm. Oil Pickup [Incl. 13]
1204082
$73,49 Unit Price incl. VAT
16
PLUG EXPANSION 42MM
3060004
$31,49 Unit Price incl. VAT
17
SCREW
7517792
$4,19 Unit Price incl. VAT
18
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
19
Kit Crankcase [Incl. 1-5 12-18 20-22 24 25 34 From Engine Dipstick and Oil Filter Page 5/8 11]
2204399
$1 847,99 Unit Price incl. VAT
20
PLUG-SOCKET M12X1.5 DIN 908A
7052306
$31,49 Unit Price incl. VAT
21
WASHER-19X12X1.3 COPPER
5812232
$3,14 Unit Price incl. VAT
22
BEARING
3585704
$40,94 Unit Price incl. VAT
23
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
24
Plate Baffle
5253617
Not Available
25
SCREW-M5X.80X10-HX/FL-Y/D
7518045
$19,94 Unit Price incl. VAT
26
SCREW
7517865
$20,99 Unit Price incl. VAT
27
Spring Torsion Command Lever
7555982
7558715
$26,24 Unit Price incl. VAT
28
KIT GEAR SET
2203106
Not Available
29
KEY WOODRUFF
7721131
$41,99 Unit Price incl. VAT
30
WASHER SPRING
7556183
$17,84 Unit Price incl. VAT
31
SCREW-M6X12 TORX DR FH
7517598
$19,94 Unit Price incl. VAT
32
PLATE THRUST
5244286
$99,74 Unit Price incl. VAT
33
Kit Camshaft [Incl. Cam and Lifters][Built 9/06/10 and After]
2204396
2203740
$871,49 Unit Price incl. VAT
33
Camshaft Phase Sensing HO [Built 9/05/10 and Before]
3022287
2203740
$871,49 Unit Price incl. VAT
34
PLUG-EXPANSION 19MM
7051530
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
