CARBURETOR FOR 440 XCR - 0971660 FROM 1997

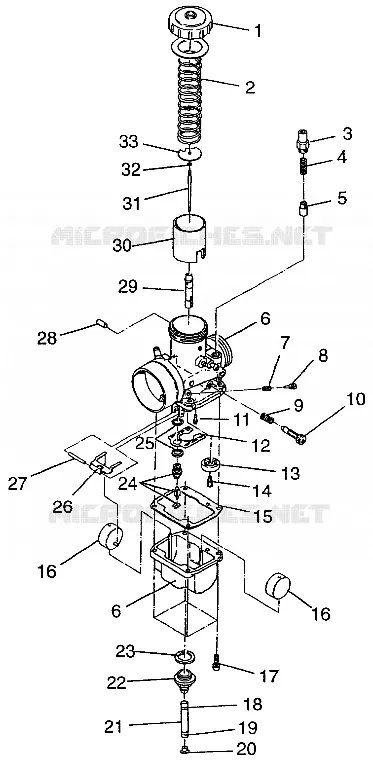

CARBURETOR

1

TOP (Incl. 3)

3130061

Not Available

2

SPRING THROTTLE

3130444

Not Available

3

HOLDER GUIDE

3130199

$52,49 Unit Price incl. VAT

4

SPRING PLUNGER

3130006

$18,89 Unit Price incl. VAT

5

ASM. PLUNGER

3130328

$68,24 Unit Price incl. VAT

6

CARBURETOR ASM 34MM SNO (Incl. 1-17 22-33)

1253162

Not Available

7

SPRING AIR ADJUST

3130012

$18,89 Unit Price incl. VAT

8

SCREW AIR

3130011

$36,74 Unit Price incl. VAT

9

SPRING THROTTLE ADJUSTER

3130010

$18,89 Unit Price incl. VAT

10

SCREW THROTTLE STOP

3130009

$36,74 Unit Price incl. VAT

11

JET PILOT #50(10) (#50)

3130629

$15,74 Unit Price incl. VAT

12

PLATE

3130580

Not Available

13

RING

3130576

Not Available

14

JET MAIN HX.HD#360(10) (#360) (PTO Side)

3130139

Not Available

15

GASKET FLOATCHAMBER

3130578

$36,74 Unit Price incl. VAT

16

FLOAT ASM.

3130581

Not Available

17

SCREW

3130056

$6,29 Unit Price incl. VAT

18

CLAMP HOSE

7080534

$3,14 Unit Price incl. VAT

19

CLAMP HOSE(10)

7080544

Not Available

20

PLUG TRAP

5431893

$26,24 Unit Price incl. VAT

21

FUEL LINE 5 FT.

8450045153

$157,49 Unit Price incl. VAT

22

NIPPLE

3130573

$68,24 Unit Price incl. VAT

23

O-RING

3130239

Not Available

24

VALVE ASM NEEDLE Substituted by 3130643

3130046

$115,49 Unit Price incl. VAT

25

WASHER(10)

3130047

$9,44 Unit Price incl. VAT

26

ARM FLOAT

3130577

$19,83 Unit Price incl. VAT

27

PIN FLOAT

3130361

$18,89 Unit Price incl. VAT

28

CAP

3130595

Not Available

29

NEEDLE JET(0-4)286 (286)

3130635

Not Available

30

VALVE THROTTLE (1.5) (1.5)

3130694

Not Available

31

JET NEEDLE (6DH3-3) (6DH3-3)

3130470

Not Available

32

E RING(10) Substituted by 3130508

3130003

$12,59 Unit Price incl. VAT

33

PLATE THROTTLE

3130027

$19,94 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
