1
Engine displacement
800
2
Year
2003
3
Trim
800-xcr
4
Parts Catalog
CONSOLE
5

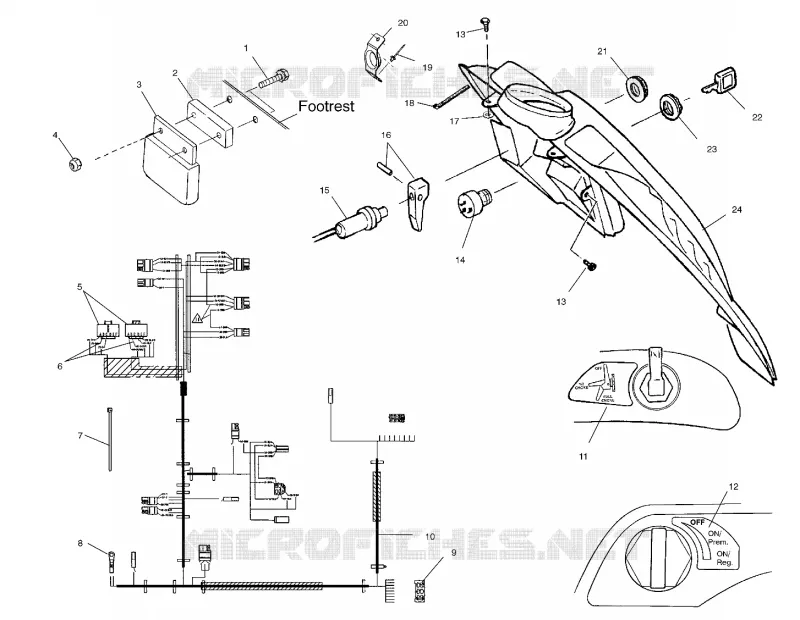

Parts Diagram
Parts Catalog
DECALS
by
COOLING SYSTEM
CONSOLE
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
1
BOLT(10)
7512031
$3,98 Unit Price incl. VAT
2
SPACER REGULATOR
5211573
Not Available
3
REGULATOR (14.3VAC) LR-7
4060123
2203873
$188,99 Unit Price incl. VAT
4
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
5
HOUSING-CONNECTOR PAC#12186213
4010193
$15,74 Unit Price incl. VAT
6
SOCKET-PACKARD#12047767
4010192
Not Available
7
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
8
TERMINAL RING
4020092
Not Available
9
HOUSING W/RECEPTACLE
4020057
$5,66 Unit Price incl. VAT
10
Harness Main Wire
2461016
$264,06 Unit Price incl. VAT
11
DECAL CHOKE
7170054
$52,49 Unit Price incl. VAT
12
DECAL-IGNITION OFF/PREM/REG
7078039
Not Available
13
SCR-1/4-20X3/4 TR/TX/TAP-Y
7515199
$2,09 Unit Price incl. VAT
14
KIT-IGNITION SWITCH ES FUEL
2201614
Not Available
15
CABLE CHOKE SINGLE-PULL
7080734
Not Available
16
KIT CHOKE LEVER
2201439
$47,24 Unit Price incl. VAT
17
WASHER NYLON
7555932
$4,19 Unit Price incl. VAT
18
CABLE TIE RELEASABLE
7080804
$6,29 Unit Price incl. VAT
19
RIVET
7621330
$2,09 Unit Price incl. VAT
20
GUIDE RECOIL
5243049
$18,89 Unit Price incl. VAT
21
NUT CHOKE
5432944
$15,74 Unit Price incl. VAT
22
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
23
NUT IGNITION
7547035
$15,74 Unit Price incl. VAT
24
CONSOLE HYBRID BLK (RMK)
5432906
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
