1
Engine displacement
780
2
Year
1996
3
Trim
INTL SLX 780 - I964287
4
Parts Catalog

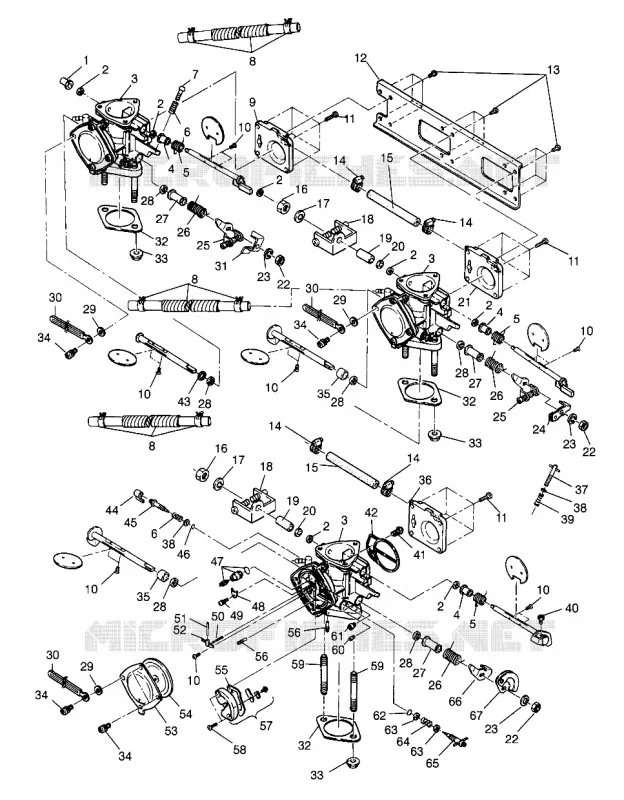

CARBURETOR SLX 780 B964287 (4937443744C004)
5
Parts Diagram
Parts Catalog
CRANKSHAFT PISTON SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C003)
by
OIL PUMP SLX 780 B964287 (4937443744C006)
CARBURETOR SLX 780 B964287 (4937443744C004)
1
2
2
2
2
2
2
2
3
3
3
4
4
4
5
5
5
6
6
7
8
8
8
9
10
10
10
10
10
10
10
11
11
11
12
13
14
14
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
22
22
22
23
23
23
24
25
25
26
26
26
27
27
27
28
28
28
28
28
28
29
29
29
30
30
30
31
32
32
32
33
33
33
34
34
34
34
35
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
59
59
60
61
62
63
63
64
65
66
67
1
2
2
2
2
2
2
2
3
3
3
4
4
4
5
5
5
6
6
7
8
8
8
9
10
10
10
10
10
10
10
11
11
11
12
13
14
14
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
22
22
22
23
23
23
24
25
25
26
26
26
27
27
27
28
28
28
28
28
28
29
29
29
30
30
30
31
32
32
32
33
33
33
34
34
34
34
35
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
59
59
60
61
62
63
63
64
65
66
67
1
RING
3140025
$2,72 Unit Price incl. VAT
2
SEAL
3140022
$7,97 Unit Price incl. VAT
3
CARBURETOR ASM 3 CYL. (Incl. 1-31 34-67)
3140115
$1 889,99 Unit Price incl. VAT
4
RING
3140021
Not Available
5
SPRING
3140020
$7,97 Unit Price incl. VAT
6
SPRING
3140054
$2,93 Unit Price incl. VAT
7
SCREW
3140027
$3,14 Unit Price incl. VAT
8
PIPE ASM VINYL 3 (Incl. Spiral Tube 2 Clamps)
3140109
Not Available
9
COVER ASM.
3140099
Not Available
10
SCREW(10)
3140065
Not Available
11
SCREW
3140098
$5,87 Unit Price incl. VAT
12
PLATE
3140008
$132,29 Unit Price incl. VAT
13
SCREW
3140009
Not Available
14
CLAMP
3140028
$15,42 Unit Price incl. VAT
15
HOSE
3140029
Not Available
16
NUT
3140079
Not Available
17
WASHER SPRING
3140078
Not Available
18
LEVER ASM CHOKE
3140101
Not Available
19
RING
3140076
$5,45 Unit Price incl. VAT
20
RING
3140080
Not Available
21
COVER ASM.
3140102
Not Available
22
NUT
3140011
Not Available
23
WASHER SPRING
3140012
Not Available
24
LEVER THROTTLE
3140081
Not Available
25
LEVER ASM THROTTLE
3140088
Not Available
26
SPRING
3140003
Not Available
27
RING
3140002
Not Available
28
SEAL
3140001
Not Available
29
WASHER
3140091
Not Available
30
PLATE
3140090
Not Available
31
LEVER THROTTLE
3140070
$7,97 Unit Price incl. VAT
32
GASKET CARBURETOR (10) (Carburetor)
3240128
Not Available
33
NUT FLANGE (10)
3240058
Not Available
34
SCREW Substituted by 3140027
3140100
Not Available
35
RING
3140032
Not Available
36
COVER ASM.
3140095
Not Available
37
SCREW
3140096
Not Available
38
WASHER
3140014
Not Available
39
SPRING
3140013
Not Available
40
SCREW
3140019
Not Available
41
FILTER
3140039
$11,54 Unit Price incl. VAT
42
O-RING (GASKET)
3140006
Not Available
43
PACKING
3140030
Not Available
44
CAP
3140047
$6,71 Unit Price incl. VAT
45
ADJUSTER
3140048
Not Available
46
RING
3140049
$17,84 Unit Price incl. VAT
47
NEEDLEVALVE ASM.
3140040
Not Available
48
PLATE
3140037
Not Available
49
SCREW (10)
3140038
Not Available
50
SPRING(10)
3130491
Not Available
51
PIN
3140036
Not Available
52
ARM
3140041
Not Available
53
COVER
3140045
$3,98 Unit Price incl. VAT
54
DIAPHRAGM ASM.
3140044
Not Available
55
GASKET
3140043
Not Available
56
SCREW (1)
3140018
Not Available
57
BODY ASM.
3140035
$65,40 Unit Price incl. VAT
58
SCREW (10)
3140034
Not Available
59
BOLT
3140026
$30,75 Unit Price incl. VAT
60
JET PILOT #67.5 (#67.5)
3140117
Not Available
61
JET MAIN #110 (#110)
3140116
$4,29 Unit Price incl. VAT
62
O-RING
3140053
$10,49 Unit Price incl. VAT
63
WASHER
3140052
Not Available
64
SPRING
3140051
$2,93 Unit Price incl. VAT
65
ADJUSTER
3140050
Not Available
66
LEVER THROTTLE
3140004
$19,83 Unit Price incl. VAT
67
LEVER ASM THROTTLE
3140010
$22,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for INTL SLX 780 - I964287

HULL BODY SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744A005)

HULL BODY SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744A005)

for INTL SLX 780 - I964287 from 1996

FUEL SYSTEM SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A010)

FUEL SYSTEM SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A010)

for INTL SLX 780 - I964287 from 1996

SEAT SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A011)

SEAT SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A011)

for INTL SLX 780 - I964287 from 1996

OIL TANK SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A012)

OIL TANK SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A012)

for INTL SLX 780 - I964287 from 1996

STEERING SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A013)

STEERING SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A013)

for INTL SLX 780 - I964287 from 1996

STEERING SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A014)

STEERING SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A014)

for INTL SLX 780 - I964287 from 1996

EXHAUST SYSTEM SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B005)

EXHAUST SYSTEM SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B005)

for INTL SLX 780 - I964287 from 1996

BATTERY BOX SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B006)

BATTERY BOX SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B006)

for INTL SLX 780 - I964287 from 1996

AIR VENT SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B007)

AIR VENT SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B007)

for INTL SLX 780 - I964287 from 1996

COOLING SYSTEM SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B008)

COOLING SYSTEM SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B008)

for INTL SLX 780 - I964287 from 1996

BILGE PUMP SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B013)

BILGE PUMP SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B013)

for INTL SLX 780 - I964287 from 1996

ENGINE FOGGING SYSTEM INTL. SLX 780 I964287 (4937443744B014)

ENGINE FOGGING SYSTEM INTL. SLX 780 I964287 (4937443744B014)

for INTL SLX 780 - I964287 from 1996

CRANKCASE SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C001)

CRANKCASE SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C001)

for INTL SLX 780 - I964287 from 1996

CYLINDER MANIFOLD SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C002)

CYLINDER MANIFOLD SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C002)

for INTL SLX 780 - I964287 from 1996

STARTING MOTOR SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C008)

STARTING MOTOR SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C008)

for INTL SLX 780 - I964287 from 1996

FUEL PUMP SLX 780 B964287 (4937443744C009)

FUEL PUMP SLX 780 B964287 (4937443744C009)

for INTL SLX 780 - I964287 from 1996

DRAIN SLX 780 B964287 (4937443744C010)

DRAIN SLX 780 B964287 (4937443744C010)

for INTL SLX 780 - I964287 from 1996

HULL BODY SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744A006)

HULL BODY SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744A006)

for INTL SLX 780 - I964287 from 1996

DECALS SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A007)

DECALS SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A007)

for INTL SLX 780 - I964287 from 1996

FRONT STORAGE COMPARTMENT SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A008)

FRONT STORAGE COMPARTMENT SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A008)

for INTL SLX 780 - I964287 from 1996

FUEL TANK SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A009)

FUEL TANK SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744A009)

for INTL SLX 780 - I964287 from 1996

ENGINE MOUNTING SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B001)

ENGINE MOUNTING SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B001)

for INTL SLX 780 - I964287 from 1996

DRIVE SYSTEM SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B002)

DRIVE SYSTEM SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B002)

for INTL SLX 780 - I964287 from 1996

PROPULSION SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B003)

PROPULSION SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B003)

for INTL SLX 780 - I964287 from 1996

TRIM PACKAGE SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B004)

TRIM PACKAGE SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B004)

for INTL SLX 780 - I964287 from 1996

WATER SIPHON SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B009)

WATER SIPHON SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B009)

for INTL SLX 780 - I964287 from 1996

WATER INLET SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B010)

WATER INLET SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B010)

for INTL SLX 780 - I964287 from 1996

ELECTRICAL BOX SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B011)

ELECTRICAL BOX SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B011)

for INTL SLX 780 - I964287 from 1996

TOOL KIT SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B012)

TOOL KIT SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744B012)

for INTL SLX 780 - I964287 from 1996

CRANKSHAFT PISTON SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C003)

CRANKSHAFT PISTON SLX 780 B964287 AND INTL. SLX 780 I964287 (4937443744C003)

for INTL SLX 780 - I964287 from 1996

CARBURETOR SLX 780 B964287 (4937443744C004)

CARBURETOR SLX 780 B964287 (4937443744C004)

for INTL SLX 780 - I964287 from 1996

OIL PUMP SLX 780 B964287 (4937443744C006)

OIL PUMP SLX 780 B964287 (4937443744C006)

for INTL SLX 780 - I964287 from 1996

MAGNETO SLX 780 B964287 (4937443744C007)

MAGNETO SLX 780 B964287 (4937443744C007)

for INTL SLX 780 - I964287 from 1996

POLARIS INTL SLX 780 - I964287 1996

INTL SLX 780 - I964287

INTL SLX 780 - I964287

Model : SLX

Engine capacity : 780

Year : 1996

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
