COOLING SYSTEM 500 SP/500 SKS (4921262126037A) FOR 500 SP EFI - 0920674 FROM 1992

WIRING HARNESS 500 SP/500 SKS (4921262126036A)

THROTTLE BODY 500 SP/500 SKS (4921262126043A)

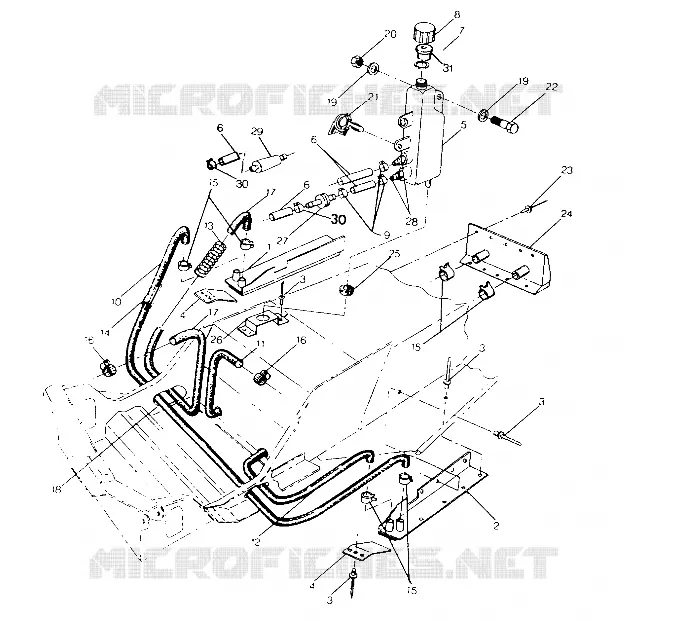

COOLING SYSTEM 500 SP/500 SKS (4921262126037A)

1

EXT COOLING LH

2511181

Not Available

2

EXT COOLING RH

2511182

Not Available

3

RIVET (MONOBOLT) Substituted by 7661637

7661620

$2,09 Unit Price incl. VAT

4

GUARD COOLING EXT

5240101

Not Available

5

BOTTLE OVERFLOW Substituted by 5431733

5431054

$73,49 Unit Price incl. VAT

6

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

$136,49 Unit Price incl. VAT

7

GASKET-OVERFLOW CAP

5810279

$4,19 Unit Price incl. VAT

8

CAP-OVER FLOW BOTTLE DRILLED

5430743

$10,49 Unit Price incl. VAT

9

CLAMP-HOSE (LARGE GREEN)

7080307

$1,56 Unit Price incl. VAT

10

HOSE-CROSSOVER

5410324

Not Available

11

HOSE

5410398

Not Available

12

HOSE-CROSSOVER

5410350

Not Available

13

SPRING HOSE RETAINER

7041079

$7,97 Unit Price incl. VAT

14

CLIP

7080277

Not Available

15

CLAMP-HOSE Substituted by 7080547

7080225

Not Available

16

CLAMP-HOSE (10) Substituted by 7080475

7080233

Not Available

17

HOSE-INLET

5410323

Not Available

18

TRIM EDGE

5521131

$83,99 Unit Price incl. VAT

19

WASHER-.312 X .734 X .065-Z

7558302

$3,14 Unit Price incl. VAT

20

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

21

CLIP ROSEBUD

4020139

$9,44 Unit Price incl. VAT

22

BOLT(10)

7512240

$7,34 Unit Price incl. VAT

24

EXT CTR.COOLING

2511187

Not Available

25

GROMMET RUBBER

5410021

Not Available

26

BRACKET

5223985

Not Available

27

VALVE CHECK

7052038

$20,99 Unit Price incl. VAT

28

FITTING OUTLET SINGLE

7052042

$13,64 Unit Price incl. VAT

29

FILTER WATER LINE Substituted by 2530024

2530010

Not Available

30

CLAMP-HOSE(10)

7080134

Not Available

31

PLUG-OVERFLOW 8X (RED)

5431096

$3,66 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
