DRIVE TRAIN, REAR GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
DRIVE TRAIN, REAR GEARCASE MOUNTING

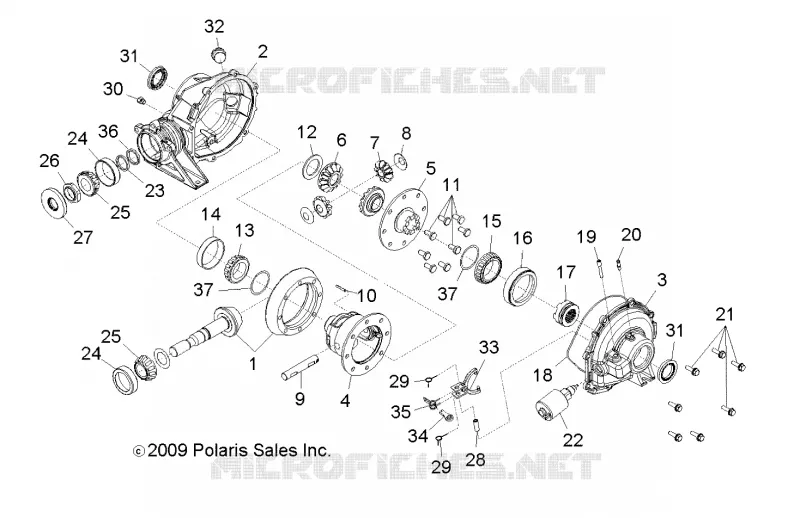

DRIVE TRAIN, REAR GEARCASE
-
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
29
29
30
31
31
32
33
34
35
36
37
37
-
ASM. GEARCASE REAR
1332827
$4 058,24 Unit Price incl. VAT
-
KIT HOUSING ASM. [INCL. 1 2 11 20 23-27 31 36 37]
2203888
$2 346,74 Unit Price incl. VAT
1
ASM. HYPOID GEAR
1332714
$2 635,49 Unit Price incl. VAT
2
HOUSING CARRIER
2203498
$902,99 Unit Price incl. VAT
3
COVER CARRIER
2203499
Not Available
4
CASE HALF DIFF
5134901
$682,49 Unit Price incl. VAT
5
COVER CASE HALF DIFF
5134906
$556,49 Unit Price incl. VAT
6
GEAR DIFF SIDE
5134904
Not Available
7
GEAR DIFF PINION MATE
5134903
Not Available
8
WASHER PINION THRUST
7556347
$17,84 Unit Price incl. VAT
9
PIN DIFF CROSS
5134902
$146,99 Unit Price incl. VAT
10
PIN DIFF ROLL
7661164
$10,49 Unit Price incl. VAT
11
BOLT HEX RING GEAR
7518173
$9,44 Unit Price incl. VAT
12
WASHER THRUST SIDE
7556346
$41,99 Unit Price incl. VAT
13
BEARING CONE DIFF
3514434
$208,94 Unit Price incl. VAT
14
BEARING DIFF [CUP]
3514433
$108,14 Unit Price incl. VAT
15
ROLLER BEARING
2203500
$74,01 Unit Price incl. VAT
16
CUP BEARING
2203881
$178,49 Unit Price incl. VAT
17
GEAR CLUTCH
5137196
$278,24 Unit Price incl. VAT
18
O-RING HOUSING HALVES
5412338
$17,84 Unit Price incl. VAT
19
ASM. LOCK PIN
2203503
$25,19 Unit Price incl. VAT
20
VENT TUBE
7052334
Not Available
21
BOLT FLANGE HEX
7518172
$13,64 Unit Price incl. VAT
22
SOLENOID DIFF LOCK
2410368
$593,24 Unit Price incl. VAT
23
KIT SPACER
2203505
$83,99 Unit Price incl. VAT
24
BEARING CUP PINION
3514431
$41,99 Unit Price incl. VAT
25
BEARING CONE PINION
3514432
$89,24 Unit Price incl. VAT
26
NUT PINION
7547433
$94,49 Unit Price incl. VAT
27
SEAL OIL PINION
3610102
$57,74 Unit Price incl. VAT
28
BUSHING LOCK PIN
2203507
$19,94 Unit Price incl. VAT
29
SPRING SHAFT RETURN
7042210
$15,74 Unit Price incl. VAT
30
PLUG DRAIN
5133731
$20,99 Unit Price incl. VAT
31
SEAL OIL SHAFT
3610146
$25,19 Unit Price incl. VAT
32
PLUG FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
33
YOKE SHIFT
5133759
$272,99 Unit Price incl. VAT
34
LEVER SHIFT
5133760
$18,89 Unit Price incl. VAT
35
SPRING SHIFT LEVER
7042209
$13,64 Unit Price incl. VAT
36
SPACER PINION
2203510
$24,14 Unit Price incl. VAT
37
KIT DIFFERENTIAL SHIM
2875333
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
