1
Engine displacement
1000
2
Year
2022
3
Trim
SCRAMBLER XP 1000 55" EU TRACTOR/ZUG
4
Parts Catalog
ELECTRICAL, HORN AND LICENSE PLATE BRACKET
5
Parts Diagram
Parts Catalog
ELECTRICAL, HEADLIGHTS
by
ELECTRICAL, IGNITION SYSTEM

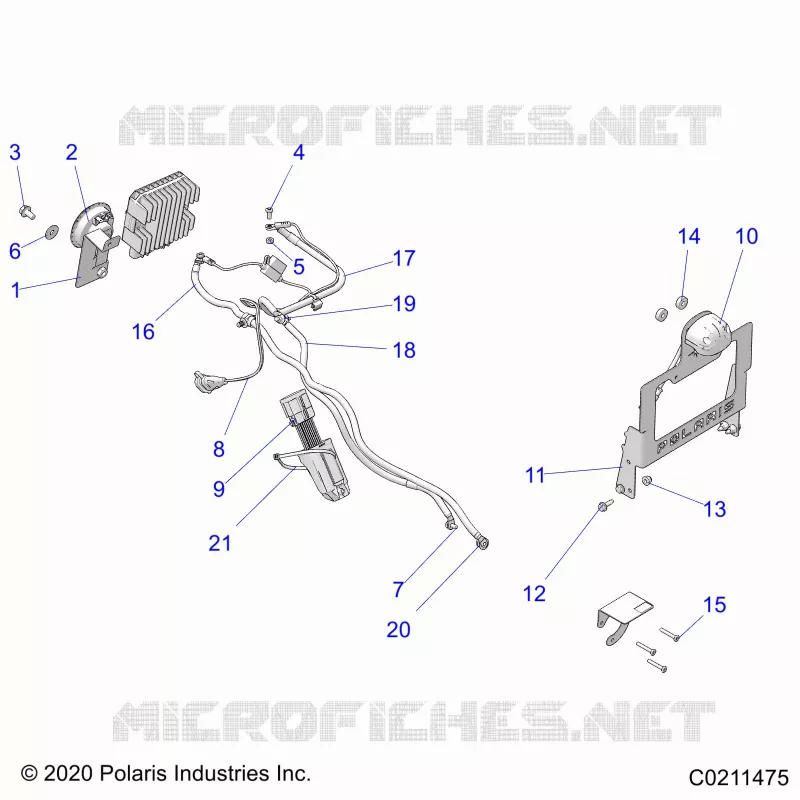

ELECTRICAL, HORN AND LICENSE PLATE BRACKET
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
WELD-BRKT HORN SUPPORT M.BLK
1025905458
Not Available
2
HORN DISC [TO 11/6/2023]
4011579
4082229
$87,14 Unit Price incl. VAT
3
SCREW-HXFL-M8X1.25X16 8.8 ZPC
7519005
$7,34 Unit Price incl. VAT
4
SCREW-PHHX-M6X1X12 LPS BATTERY
7520056
$6,29 Unit Price incl. VAT
5
NUT-M6X1 HX R.HAND-Y
7546701
$7,34 Unit Price incl. VAT
6
WASHER-M8 FW STL 2Y DIN 9021B
7556459
$3,14 Unit Price incl. VAT
7
SCR-HXFL-M6X1.0X12 8.8 ZOD P30
7519145
$7,34 Unit Price incl. VAT
8
PLUG-HARNESS BATTERY CHARGE
2415060
$62,99 Unit Price incl. VAT
9
MODULE-FLASH TURN TRAILER TRC
4017177
$141,74 Unit Price incl. VAT
10
LIGHT-LICENSE PLATE TRACTR BLK
2413838
$152,24 Unit Price incl. VAT
11
BRKT-RR LIC.PLATE SCRM M.BLK
5270287458
Not Available
12
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
13
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
14
WASHER NYLON
7555932
$4,19 Unit Price incl. VAT
15
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
$9,44 Unit Price incl. VAT
16
CABLE-BATTERY/SOLENOID
4019390
Not Available
17
CABLE NEGATIVE
4018144
$83,99 Unit Price incl. VAT
18
CABLE NEGATIVE
4018145
$62,99 Unit Price incl. VAT
19
STUD-M6X1.0X19-M6 TAPTITE
7519333
$14,69 Unit Price incl. VAT
20
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
21
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
