CHASSIS, MAIN FRAME AND SKID PLATES
5
Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME
by
DRIVE TRAIN, GEAR SELECTOR

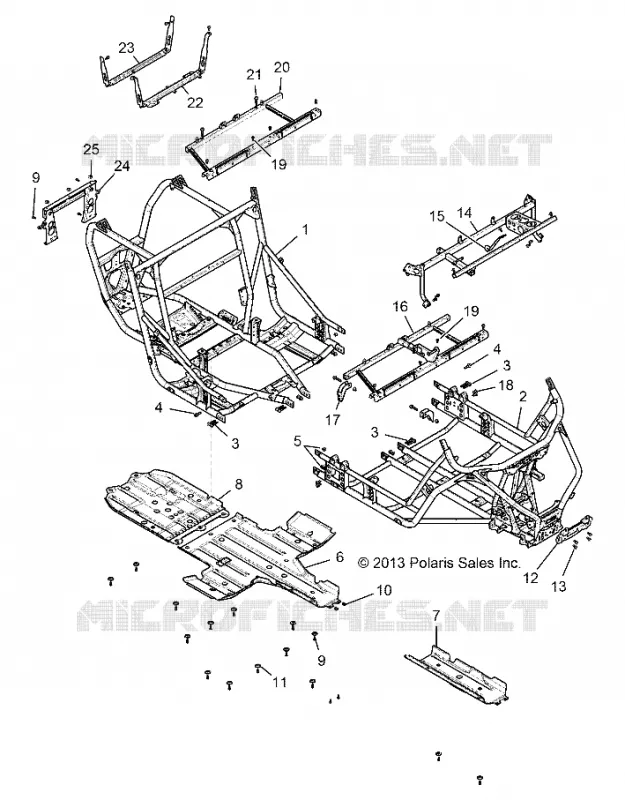

CHASSIS, MAIN FRAME AND SKID PLATES
1
2
3
3
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
1
1
2
3
3
4
4
5
6
7
8
9
10
11
12
1
FRAME MAIN BLACK [AT][AV][AW][AA][LP][AO][AP][AU][AZ][NV][NW]
1019211458
Not Available
2
FRAME MAIN FRONT MP MATTE BLACK
1019775458
Not Available
3
SCR-HXFL-M10X1.25X55 10.9 ZOD
7519285
$4,19 Unit Price incl. VAT
4
SCR-HXFL-M10X1.25X40 8.8 ZOD
7519332
$10,49 Unit Price incl. VAT
5
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
6
PLATE SKID BLACK
5450239070
5456432-070
$472,49 Unit Price incl. VAT
7
PLATE SKID BLACK
5450556070
$293,99 Unit Price incl. VAT
8
PLATE SKID REAR BLACK
5450568070
$299,24 Unit Price incl. VAT
9
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
10
NUT-M6-1.0 U-TYPE (2.5-3.8)
7547674
$2,09 Unit Price incl. VAT
11
WASHER-SKID PLATE
7556065
$8,39 Unit Price incl. VAT
12
MOUNT SUSPENSION MATTE BLACK
1019453458
$152,24 Unit Price incl. VAT
13
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
14
DASH BLACK
1019375329
Not Available
15
BRACKET DIN. MOUNT BLACK
5257304329
$52,49 Unit Price incl. VAT
16
BASE SEAT FRONT MP BLACK
1019812329
Not Available
17
BRACKET SEAT SUPPORT FRONT MP BLACK
5258097329
$99,74 Unit Price incl. VAT
18
SCR-M10X1.5X25-8.8 HFS ZOD
7518934
$7,34 Unit Price incl. VAT
19
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
20
BASE SEAT REAR BLACK
1019777329
$440,99 Unit Price incl. VAT
21
SCR-HXFL-M10X1.5X55 8.8 ZY3
7518474
$9,44 Unit Price incl. VAT
22
BRACKET BOX STRAP BLACK
5257305329
Not Available
23
BRACKET BOX SUPPORT REAR BLACK
5258699329
$115,49 Unit Price incl. VAT
24
SUPPORT REAR MATTE BLACK
1019529458
$230,99 Unit Price incl. VAT
25
GROMMET-SILICONE PSA [BUILT 5/4/15 AND BEFORE]
5415043
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
