Engine displacement
570
2
Year
2015
3
Trim
sportsman-ace-570-euro
4
Parts Catalog
STARTER DRIVE
5

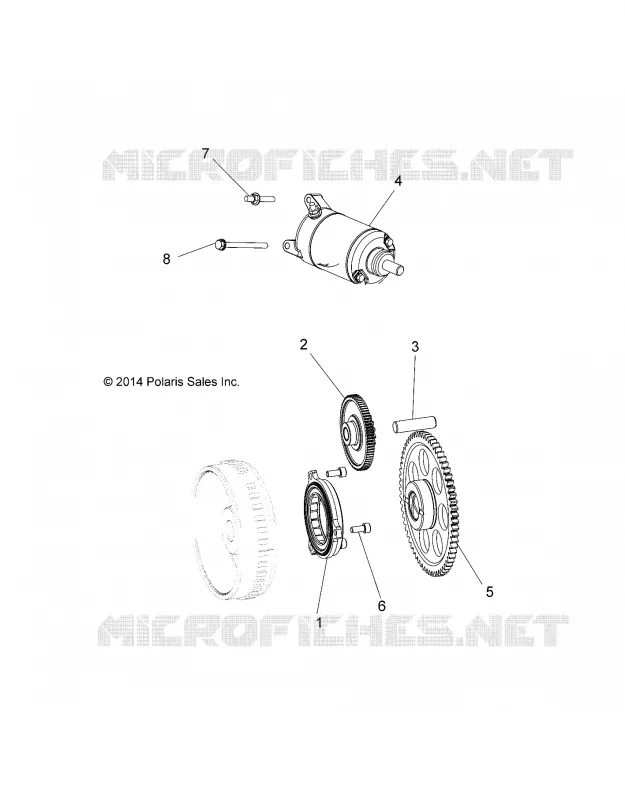

Parts Diagram
Parts Catalog
OIL PUMP
by
ENGINE, VALVE COVER
STARTER DRIVE
1
2
3
4
5
6
7
8
1
ASM-SPRAG CLUTCH HUB STARTER
1204884
$277,19 Unit Price incl. VAT
2
ASM-GEAR STARTER
1204683
$330,74 Unit Price incl. VAT
3
PIN SOLID STARTER TORQUE LIMIT GEAR [TO 11/1/2020]
3022500
3023967
$52,49 Unit Price incl. VAT
4
STARTER 1 CYLINDER
4013015
4014909
$414,53 Unit Price incl. VAT
5
GEAR-FREEWHEEL 1WAY CLUTCH
6230561
$351,74 Unit Price incl. VAT
6
SCREW-M6X1.0X14.0 HX/SOC/CP-Y/D
7517431
$10,49 Unit Price incl. VAT
7
STUD-DOUBLE END M6X1.0X25/10
7519237
$7,34 Unit Price incl. VAT
8
SCREW
7518755
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
