1
Engine displacement
1000
2
Year
2019
3
Trim
RANGER XP 1000 EPS EU / TRACTOR / ZUG
4
Parts Catalog
WIRE HARNESS
5

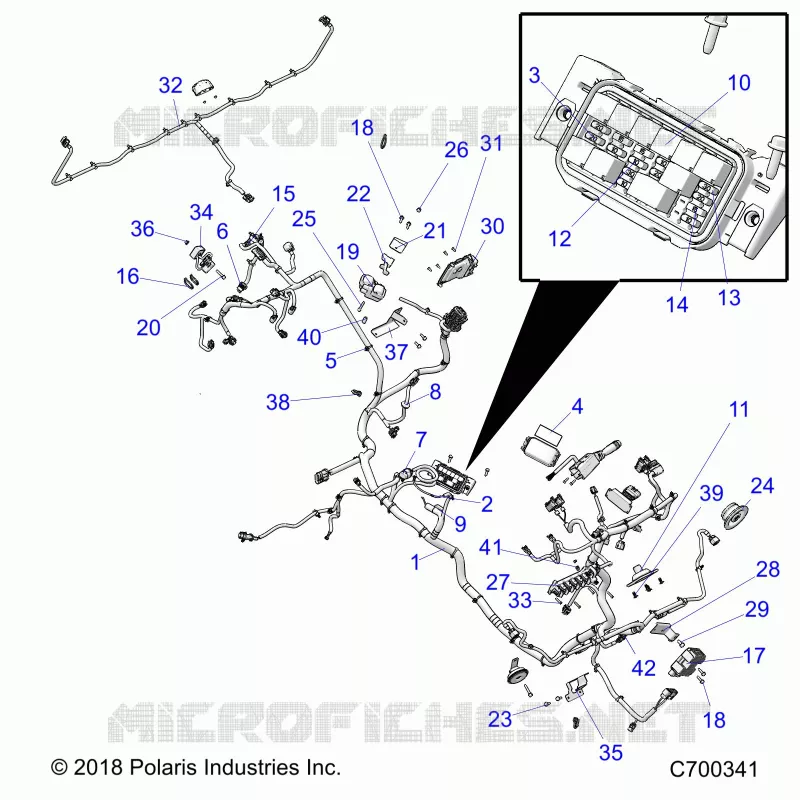

Parts Diagram
Parts Catalog
HEADLIGHTS AND TAILLIGHTS
by
ENGINE, AIR INTAKE MANIFOLD
WIRE HARNESS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
24
25
26
27
27
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
HARNESS-CHASSIS RGR1K EU [INCL 2-16 ]
2414558
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
4
LABEL FUSE BOX
7187028
Not Available
5
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
6
CONNECTOR-7-WAY EURO TRAILER
4012558
Not Available
7
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
8
GROMMET-USB
5415308
$7,34 Unit Price incl. VAT
9
BREAKER-CIRCUIT 20 AMP SEALED
2410881
$141,74 Unit Price incl. VAT
10
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
11
GROMMET - 65MM W/FLANGE BLK
5814560
$24,14 Unit Price incl. VAT
12
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
13
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
14
FUSE-MINI BLADE 15 AMP
2410280
4010859
$15,74 Unit Price incl. VAT
15
COVER-FUSEHOLDER
4012260
$19,94 Unit Price incl. VAT
16
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
17
REGULATOR-3PH 50A SERIES HISPD
4016868
$246,74 Unit Price incl. VAT
18
SCR-TFHFL-M6X1.0X25 ZY3
7520715
$7,34 Unit Price incl. VAT
19
COIL-EFI
4010425
2876049
$451,49 Unit Price incl. VAT
20
BOLT-M6X1.0X35 HXFLG/SH-OLV D
7518612
$9,44 Unit Price incl. VAT
21
BRKT-COIL MOUNT
5263891
$19,94 Unit Price incl. VAT
22
SPACER-COIL MOUNT
5436577
$7,34 Unit Price incl. VAT
23
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
24
GROMMET-HOOD LINER SPLIT
5417082
$13,64 Unit Price incl. VAT
24
GROMMET-HOOD LINER
5416372
$17,84 Unit Price incl. VAT
25
SCR-M6X1.0X40 HX/SOC/CP-B
7518780
$7,34 Unit Price incl. VAT
26
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
27
COVER TB JCASE
5454284
$62,99 Unit Price incl. VAT
27
PLUG ACCY TB
5454283
$83,99 Unit Price incl. VAT
27
BLOCK-TERMINAL 3 POST TALL
4016007
$68,24 Unit Price incl. VAT
27
FUSE-CARTRIDGE 40A
4013891
$68,24 Unit Price incl. VAT
28
BRKT-MOUNT REG
5263643
$73,49 Unit Price incl. VAT
29
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
30
ECM-HARD ME17 2CYL 250K
4014125
$1 123,49 Unit Price incl. VAT
31
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
32
HARNESS BOX RANGER EU
2413922
Not Available
33
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
$7,34 Unit Price incl. VAT
34
RELAY SOLID STATE 9 AMP LONG LD
4012829
4081742
$141,74 Unit Price incl. VAT
35
BRKT-ROUTING BLK [TO 11 16 2020]
5264313329
$16,79 Unit Price incl. VAT
36
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
37
BRKT-HARNESS ROUTING BLK
5264314329
Not Available
38
CLIP-EDGE 1-3mm THICKNESS
7082403
$9,44 Unit Price incl. VAT
39
CLIP-FIR TREE DART 6.35MM
7670090
$2,09 Unit Price incl. VAT
40
SPACER-COIL FRONTIER
5133658
$13,64 Unit Price incl. VAT
41
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
42
JUMPER-BRAKE PRESSURE SWITCH
4018636
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
