1
Engine displacement
850
2
Year
2010
3
Trim
SPORTSMAN XP 850 - A10ZN85AL/AQ/AX
4
Parts Catalog
BATTERY
5

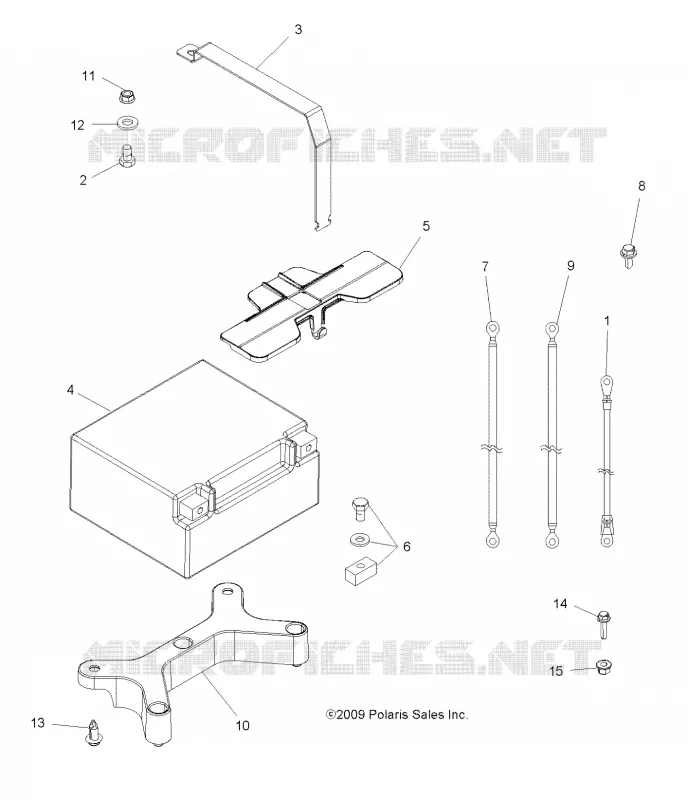

Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
by
BULBS
BATTERY
1
2
3
3
4
4
5
6
1
8
9
10
11
12
13
14
15
1
CABLE BLACK
4012709
$62,99 Unit Price incl. VAT
2
SCR-6MMX1X20 HX/CP
7518925
$6,29 Unit Price incl. VAT
3
BRKT-BATTERY STRAP 18A-H [TO 12/1/2021]
5253372
$20,99 Unit Price incl. VAT
3
BRKT-BATTERY 30AH
5253600
$68,24 Unit Price incl. VAT
4
Battery
4011496
4081963
$230,25 Unit Price incl. VAT
4
BATTERY SEALED 30 AMP [OPT.]
4011224
4014609
$283,49 Unit Price incl. VAT
5
COVER BATTERY
5438299
$29,39 Unit Price incl. VAT
6
KIT BATTERY BOLT [INCL. BOLTS WASHERS NUTS]
2201357
$20,99 Unit Price incl. VAT
7
CABLE BLACK
4012709
$62,99 Unit Price incl. VAT
8
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
9
CABLE BATTERY/SOLENOID
4012710
$83,99 Unit Price incl. VAT
10
Spacer Battery
5438228
$19,94 Unit Price incl. VAT
11
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
12
RETAINER-BOLT 1/4-20
7670154
$2,09 Unit Price incl. VAT
13
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
14
SCR-M6X1.0X16.0 HX/FL-Y/D
7516820
$10,49 Unit Price incl. VAT
15
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
