1
Engine displacement
500
2
Year
1998
3
Trim
SPORTSMAN 500 - W98CH50AB
4
Parts Catalog

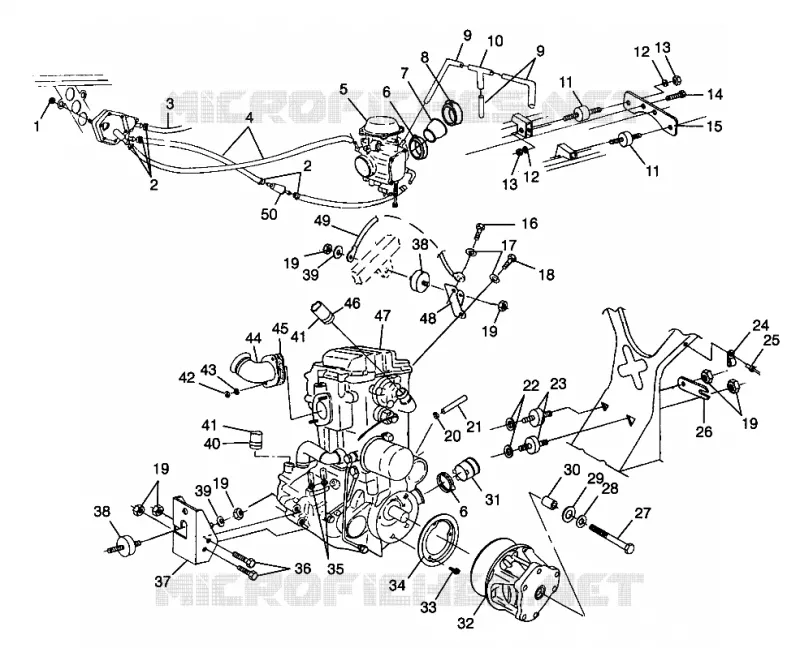

ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
EXHAUST SYSTEM
ENGINE MOUNTING
1
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
2
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
3
HOSE (.25 IDX1.75#LG.)
5811490
Not Available
4
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
7
BOOT CARB
5410995
Not Available
8
Clamp Narrow Band
7080656
7080511
$9,44 Unit Price incl. VAT
9
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
10
FITTING-TEE 1/4-1/4-BRB-NY
7052075
$17,84 Unit Price incl. VAT
11
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
12
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
13
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
STRAP CARB.MT BLK.
5211626067
Not Available
16
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
17
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
18
Bolt
7512315
$9,44 Unit Price incl. VAT
19
Nut
7542403
Not Available
20
Clamp Hose Spring .75 Inch
7080694
$10,49 Unit Price incl. VAT
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
WASHER FLAT
7555815
$7,34 Unit Price incl. VAT
23
Mount Rubber
3110046
Not Available
24
CLAMP-NYLON CABLE 1/4#
7080539
$9,44 Unit Price incl. VAT
25
RIVET-POP3/16(.251-.375)AL-B
7621462
$2,09 Unit Price incl. VAT
26
STRAP FRAME SUPPORT BLK
5224658067
Not Available
27
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
28
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
29
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
30
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
31
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
34
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
35
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
36
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
$9,44 Unit Price incl. VAT
37
MOUNT FR.ENGINE BLK.
5241150067
Not Available
38
Mount Rubber
3110044
3024012
$83,99 Unit Price incl. VAT
39
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
40
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
41
HOSE 3/4X22#
5411410
Not Available
42
NUT(10)
3080285
Not Available
43
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
44
MANIFOLD BLK
1260771029
Not Available
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
47
ENG.(S.B.)EH50PLE-01 (EH50PLE03) NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authorization require
3085556
Not Available
48
MOUNT ENG TOP BLK
5241453067
Not Available
49
CABLE GND-ENGINE
4010132
Not Available
50
FILTER
2530009
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
