1
Engine displacement
570
2
Year
2017
3
Trim
RANGER 570, FULL SIZE
4
Parts Catalog
FLOOR AND FENDERS
5
Parts Diagram
Parts Catalog
BODY, BOX MOUNTING
by
TAILGATE ASM.

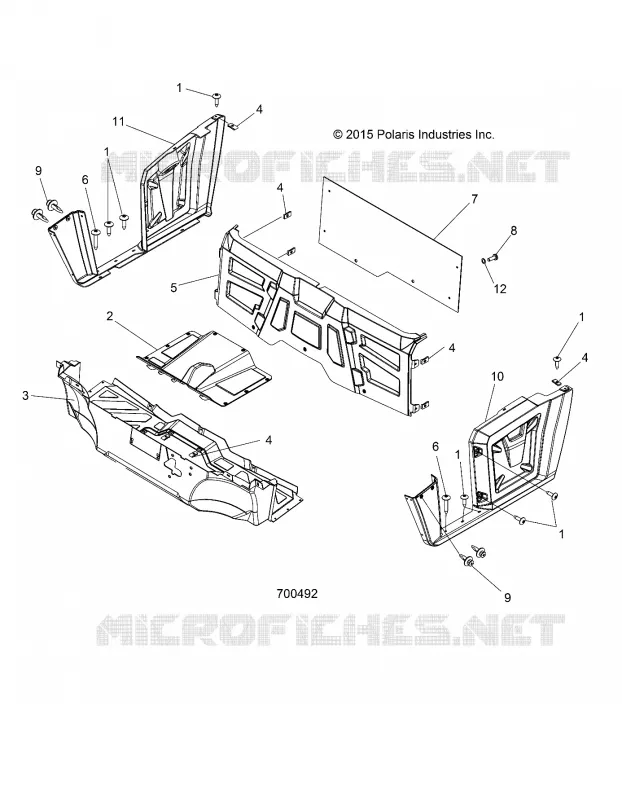

FLOOR AND FENDERS
1
1
1
1
1
2
3
4
4
4
4
4
5
5
1
7
8
9
9
10
11
12
1
2
3
4
1
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
2
COVER-DRIVE SHAFT FLOOR BLK
5437657070
$125,99 Unit Price incl. VAT
3
ASM-FLOOR MAIN RANGER BLK [INCL. 4 QTY 9]
2635980070
$981,74 Unit Price incl. VAT
4
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
5
FLOOR-REAR RANGER BLK
5438797070
2204389
$430,49 Unit Price incl. VAT
6
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
7
SHIELD FLOOR BACK
5813654
Not Available
8
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
9
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
10
FENDER-REAR W/ROCKER LH BLK
5437566070
$362,24 Unit Price incl. VAT
11
FENDER-REAR W/ROCKER RH BLK
5437567070
$362,24 Unit Price incl. VAT
12
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
