GEARCASE (CASES AND SNORKEL) FOR SPORTSMAN 335 - A00CH33AG FROM 2000

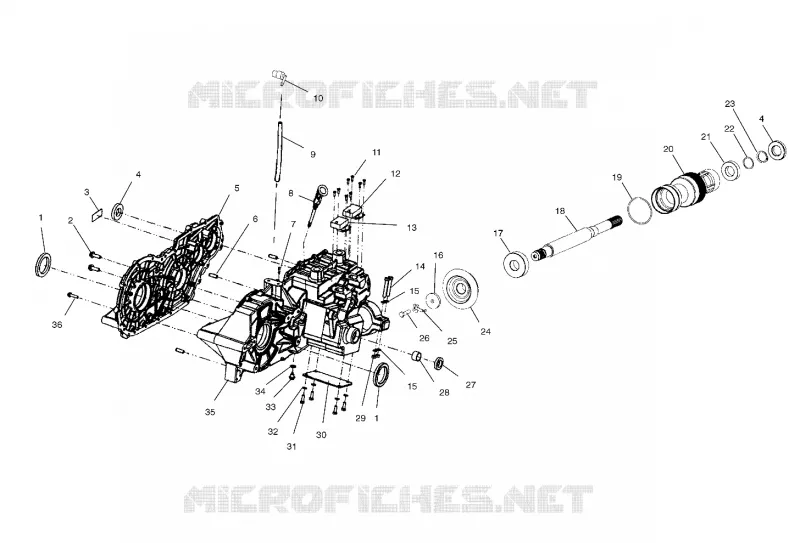

GEARCASE (CASES AND SNORKEL)

-

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

1

SEAL

3233256

$57,74 Unit Price incl. VAT

2

SCREW

3233252

$9,44 Unit Price incl. VAT

3

DECAL-SWITCH

3233636

Not Available

4

SEAL

3233248

$57,74 Unit Price incl. VAT

5

GEARCASE-LH

3233716

Not Available

6

PIN DOWEL

3233247

$13,64 Unit Price incl. VAT

7

VENT

3233037

Not Available

8

DIPSTICK

3233475

Not Available

9

HOSE-POLY CLEAR 3/16 OD 1/8 ID

8360009600

$83,99 Unit Price incl. VAT

10

FITTING 90 DEGREE

7052095

$9,44 Unit Price incl. VAT

11

SCREW Substituted by 3233749

3233691

$10,49 Unit Price incl. VAT

12

SWITCH ITW 2 POSITION

3233617

Not Available

13

SWITCH-H/R ITW

3233635

$262,49 Unit Price incl. VAT

14

BOLT

3233442

$3,98 Unit Price incl. VAT

15

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

16

WASHER

3233352

$3,14 Unit Price incl. VAT

17

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

18

SHAFT SNORKEL

3233446

Not Available

19

O-RING

3233302

Not Available

20

SNORKEL

3233303

Not Available

21

Bearing Ball

3233305

$54,59 Unit Price incl. VAT

22

SPACER (1.180 x .995 x .040)

3233355

Not Available

22

SPACER (1.180 x .995 x .005)

3233356

Not Available

22

SPACER

3233357

$36,74 Unit Price incl. VAT

22

SPACER (1.180 x .995 x .010)

3233353

$4,08 Unit Price incl. VAT

22

SPACER (1.180 x .995 x .025)

3233354

$4,08 Unit Price incl. VAT

23

RING RETAINING BASIC EXT 0.938

3233306

$9,44 Unit Price incl. VAT

24

GEAR 31T SNORKEL

3233476

Not Available

25

BOLT LOCK SNORKEL GEAR

3233444

$4,19 Unit Price incl. VAT

26

BOLT

3233351

$3,66 Unit Price incl. VAT

27

SEAL

3233293

Not Available

28

BUSHING

3233292

$57,74 Unit Price incl. VAT

29

NUT FLEXLOCK

3233291

$5,24 Unit Price incl. VAT

30

PLATE COVER

3233294

$18,57 Unit Price incl. VAT

31

SCREW

3233296

Not Available

32

WASHER LOCK

3233295

$3,66 Unit Price incl. VAT

33

PLUG DRAIN Substituted by 3233777

3233253

$52,49 Unit Price incl. VAT

34

PLUG WASHER

3233254

$14,69 Unit Price incl. VAT

35

GEARCASE-RH Substituted by 3233748

3233672

Not Available

36

SCREW

3233026

$12,59 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
