1
Engine displacement
500
2
Year
2010
3
Trim
SPORTSMAN 500 HO INTL - A10MH50FX/FF
4
Parts Catalog

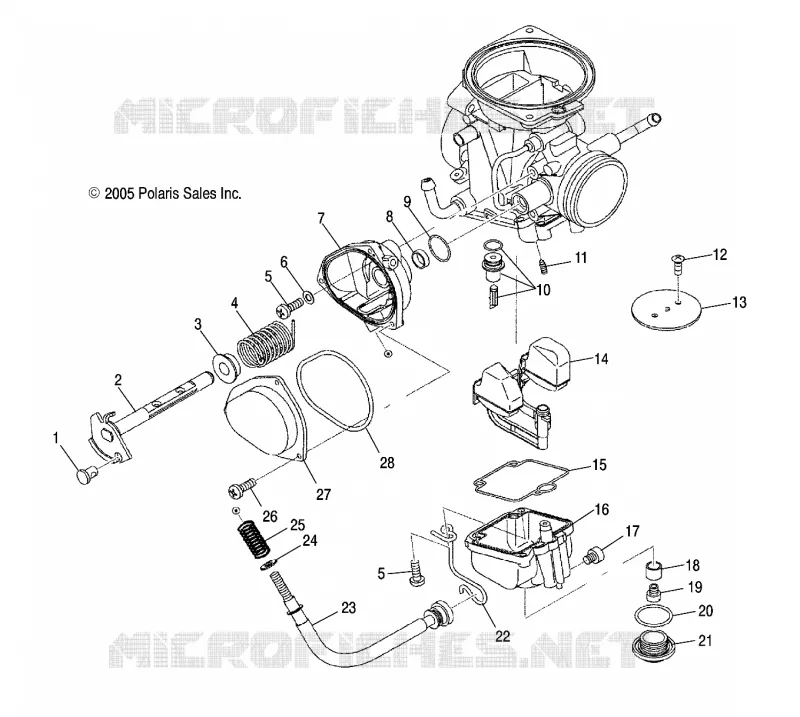

ENGINE, CARBURETOR, LOWER
5
Parts Diagram
Parts Catalog
TAIL LAMPS
by
ENGINE, CARBURETOR, UPPER
ENGINE, CARBURETOR, LOWER
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
CABLE GUIDE MIKUNI BTM36/30
3130543
$62,99 Unit Price incl. VAT
2
THROTTLE SHAFT ASSM.
3130931
$120,74 Unit Price incl. VAT
3
RING
3130932
$3,14 Unit Price incl. VAT
4
SPRING
3130927
$10,49 Unit Price incl. VAT
5
SCREW
3130933
$4,19 Unit Price incl. VAT
6
WASHER
3130926
$7,34 Unit Price incl. VAT
7
CASE
3130925
$104,99 Unit Price incl. VAT
8
SEAL
3130515
$20,99 Unit Price incl. VAT
9
O-RING
3130928
$12,59 Unit Price incl. VAT
10
Valve Needle (1.5) (1.5)
3131359
$136,49 Unit Price incl. VAT
11
Jet Pilot [#40]
3130624
$52,49 Unit Price incl. VAT
12
Screw
3131475
$7,34 Unit Price incl. VAT
13
VALVE THROTTLE (120)
3130907
$83,99 Unit Price incl. VAT
14
FLOAT ASM.
3130921
$125,99 Unit Price incl. VAT
15
SEAL
3130917
$13,64 Unit Price incl. VAT
16
FLOAT BODY ASSM.
3130923
$125,99 Unit Price incl. VAT
17
SCREW
3130935
$10,49 Unit Price incl. VAT
18
RING
3130919
Not Available
19
MAIN JET #155 (#155) MAG & PTO
3130571
3130570
$16,79 Unit Price incl. VAT
20
O-RING
3130239
Not Available
21
BOLT BANJO
3130321
$41,99 Unit Price incl. VAT
22
CLIP
3131242
$52,49 Unit Price incl. VAT
23
ASM-CABLE ADJUSTER
3131295
Not Available
24
WASHER
3131296
$17,84 Unit Price incl. VAT
25
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
26
Screw
3130924
$3,14 Unit Price incl. VAT
27
COVER
3130930
$68,24 Unit Price incl. VAT
28
O-Ring
3090008
3130929
$20,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
