1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI INTL - A06MH50FC
4
Parts Catalog

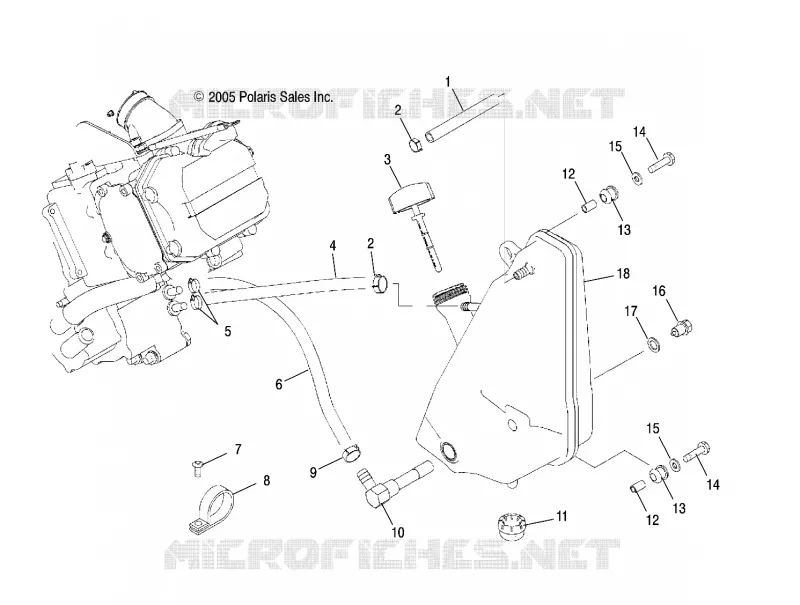

OIL TANK
5
Parts Diagram
Parts Catalog
CLUTCH COVER
by
MAGNETO
OIL TANK
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Line Breather
5413003
Not Available
2
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
3
Dipstick
5434574
$68,24 Unit Price incl. VAT
4
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
5
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
6
Line Oil
8450096100
Not Available
7
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
8
CLAMP-HOSE 3/4 BLACK
7080693
$10,49 Unit Price incl. VAT
9
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
10
Screen Oil Filter 90 Degree
7052326
$83,99 Unit Price incl. VAT
11
GROMMET
5412507
$12,59 Unit Price incl. VAT
12
Bushing
5333204
$41,99 Unit Price incl. VAT
13
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
14
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
15
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
16
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
17
WASHER
5850135
$5,76 Unit Price incl. VAT
18
Tank Oil
1261653
$509,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
