1
Engine displacement
550
2
Year
2019
3
Trim
550 INDY 144 ES
4
Parts Catalog

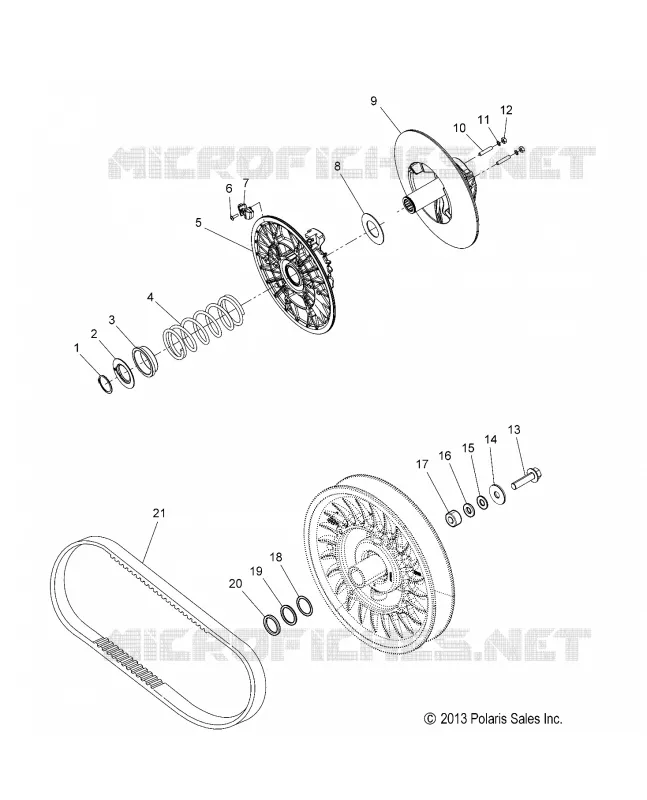

DRIVE TRAIN, CLUTCH, SECONDARY
5
Parts Diagram
Parts Catalog
NOSEPAN ASM.
by
CHASSIS, CLUTCH GUARD AND FOOTRESTS
DRIVE TRAIN, CLUTCH, SECONDARY
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
-
ASM. DRIVEN CLUTCH [INCL. 1-11]
1323048
1323854
$908,24 Unit Price incl. VAT
1
RING RETAINING
2205318
$12,59 Unit Price incl. VAT
2
SEAT SPRING
2205317
$52,49 Unit Price incl. VAT
3
GUIDE SPRING
2205316
$52,49 Unit Price incl. VAT
4
SPRING
7044155
$194,24 Unit Price incl. VAT
5
SHEAVE SLIDING
2205314
2209346
$587,99 Unit Price incl. VAT
6
SCREW
2205344
$7,34 Unit Price incl. VAT
7
SHOE CAM
2205315
$68,24 Unit Price incl. VAT
8
WASHER CVT
2205343
$36,74 Unit Price incl. VAT
9
SHEAVE FIXED [INCL. 10-12]
2205313
2209345
$666,74 Unit Price incl. VAT
10
SCREW CVT
2205345
$9,44 Unit Price incl. VAT
11
WASHER CVT
2205338
$7,34 Unit Price incl. VAT
12
NUT CVT
2205347
$7,34 Unit Price incl. VAT
13
SCR-HXFL-M10X1.25X40 ZOD NYL
7519254
$11,54 Unit Price incl. VAT
14
WASHER-FLAT 3/8 TYPE B(W)-SS
7555846
$10,49 Unit Price incl. VAT
15
WASHER
7555806
$1,56 Unit Price incl. VAT
16
Washer .105
7555832
$4,19 Unit Price incl. VAT
17
SPACER DRIVEN CLUTCH
5138317
$26,24 Unit Price incl. VAT
18
WASHER-1.000X1.254X.023-Z
7555917
$4,19 Unit Price incl. VAT
19
BUSHING
7556509
$3,14 Unit Price incl. VAT
20
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
21
BELT DRIVE 10 5/8 CVTCH
3211154
3212350
$215,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
