1
Engine displacement
570
2
Year
2020
3
Trim
SPORTSMAN 570
4
Parts Catalog

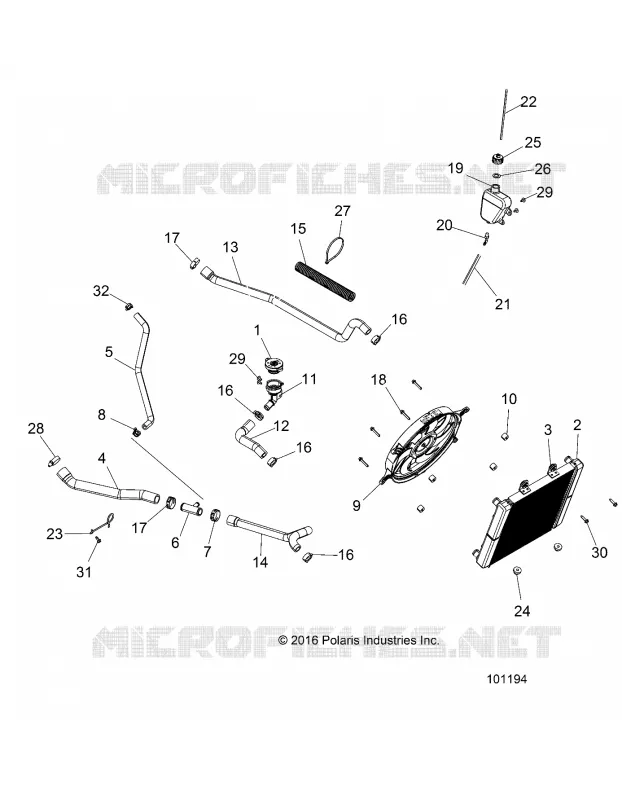

COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
THERMOSTAT AND COVER
COOLING SYSTEM
14
15
16
16
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
1
CAP PRESSURE
1240508
$89,24 Unit Price incl. VAT
2
ASM. RADIATOR
1240520
1241477
$834,74 Unit Price incl. VAT
3
ASM. GROMMET AND INSERT
5413155
$7,34 Unit Price incl. VAT
4
HOSE ENGINE LOWER
5414805
$73,49 Unit Price incl. VAT
5
HOSE BYPASS FORMED
5414806
$68,24 Unit Price incl. VAT
6
CONNECTOR-TEE 1X1X0.5
7052530
$10,49 Unit Price incl. VAT
7
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
8
CLAMP HOSE SPRING 20MM
7081719
$10,49 Unit Price incl. VAT
9
ASM-FAN AND MOTOR TRIPAC SGL
2411330
$303,96 Unit Price incl. VAT
10
SPACER-6.6IDX19ODX15 NYL BLK
5137361
$10,49 Unit Price incl. VAT
11
FILLER NECK RADIATOR
5412402
$52,49 Unit Price incl. VAT
12
HOSE FILLER NECK
5414228
$29,39 Unit Price incl. VAT
13
HOSE-RADIATOR UPPER
5414762
5417381
$104,99 Unit Price incl. VAT
14
HOSE-RADIATOR LOWER
5414765
$83,99 Unit Price incl. VAT
15
CONDUIT-FLEX 1.00 ID PE 25CM
552179325
$19,94 Unit Price incl. VAT
16
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
17
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
18
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
19
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
20
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
21
FUEL LINE-79 CENTIMETERS
845000379
Not Available
22
HOSE-POLY CLEAR 3/16 OD 1/8 ID
836000990
Not Available
23
SPRING COOLANT HOSE GUIDE [TO 8/17/2020]
5338063
5342957
$12,59 Unit Price incl. VAT
24
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
25
CAP OVER FLOW BOTTLE W/FITTING
5437635
$9,44 Unit Price incl. VAT
26
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
27
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
28
CLAMP-HOSE 13/16#-1 1/2#
7081174
$13,64 Unit Price incl. VAT
29
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
30
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
31
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
32
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
