ELECTRICAL/TAILLIGHT FOR MAGNUM 325 2X4 - A01CB32AB FROM 2001

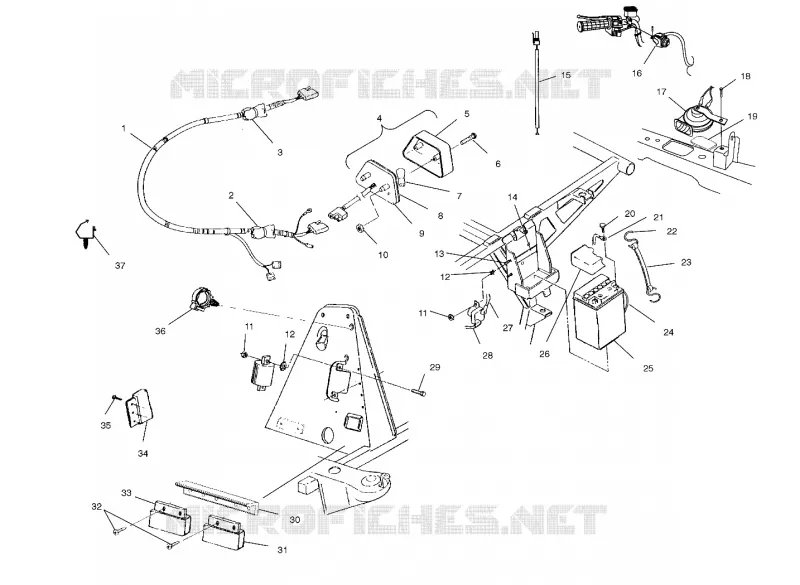

ELECTRICAL/TAILLIGHT

1

HARNESS-WIRE MAIN MAG 325 4X4 (AA)(AB)

2460960

Not Available

1

HARNESS-JUMPER THERMISTER (FB)

2460964

Not Available

2

Kit Breaker Circuit 20 AMP

2200593

$125,99 Unit Price incl. VAT

3

Kit Circuit Breaker Fan

2201795

$136,49 Unit Price incl. VAT

4

ASM. TAILLIGHT [INCL. LENS AND SCREW]

2432034

$104,99 Unit Price incl. VAT

5

LENS-TAILLIGHT

4032046

$62,99 Unit Price incl. VAT

6

SCREW-TAILLIGHT

4032029

$9,44 Unit Price incl. VAT

7

BULB TAILLIGHT

4030043

$12,59 Unit Price incl. VAT

8

GASKET TAILLIGHT

4032045

$7,34 Unit Price incl. VAT

9

Backing Taillight/Brakelight

4032064

$152,24 Unit Price incl. VAT

10

SPEED NUT-WASHER HEAD-1/4

7670054

$2,09 Unit Price incl. VAT

11

NUT-NYLOC 10-24 Y

7541925

$1,56 Unit Price incl. VAT

12

WASHER-.197X.50 INT/EXT LK-Y

7571602

$9,44 Unit Price incl. VAT

13

SCR-#10-24-5/8-PN/TORX-M

7512027

$2,09 Unit Price incl. VAT

14

PAD-BATTERY NOT SHOWN

5810290

$13,64 Unit Price incl. VAT

15

HARNESS-ADAPTER HORN (FA)

2460837

Not Available

16

SWITCH BUTTON

4010311

$115,49 Unit Price incl. VAT

17

Horn

4010310

Not Available

18

SCR-1/4-20X5/8 TAP/R-Y

7517386

$2,09 Unit Price incl. VAT

19

PAD

5810317

Not Available

20

BOLT BATT KIT(SHORT) (Short) (Not Shown)

2200361

Not Available

21

Cable Battery/Engine

4010095

Not Available

22

Hook Strap Battery

7010032

$3,14 Unit Price incl. VAT

23

STRAP BATTERY HOLDDOWN

5410424

$9,44 Unit Price incl. VAT

24

TUBE-BATTERY VENT 650 MM [NOT ILLUSTRATED]

5432077

$16,79 Unit Price incl. VAT

25

BATTERY 14 AMP [FROM 8/17/2020]

4140006

$136,49 Unit Price incl. VAT

26

Cover Battery

5431769

$29,39 Unit Price incl. VAT

27

Cable Battery/Solenoid

4010094

Not Available

28

CABLE-21# SOL/START RED

4010093

$89,24 Unit Price incl. VAT

29

BOLT

7512007

$7,34 Unit Price incl. VAT

30

SINK HEAT

5132214

$13,22 Unit Price incl. VAT

31

SWITCH-THERMISTER LR-62

4010590

$593,24 Unit Price incl. VAT

32

SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]

7512018

$6,29 Unit Price incl. VAT

33

RECTIFIER/REGULATOR LR-35

4060191

Not Available

34

LIMITER RPM 350 HZ LR44-3

4010137

Not Available

35

SCREW(10)

7512017

$9,44 Unit Price incl. VAT

36

Clip Rosebud

4020149

$12,59 Unit Price incl. VAT

37

CLIP ROUTING

7670109

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
