Parts Catalog

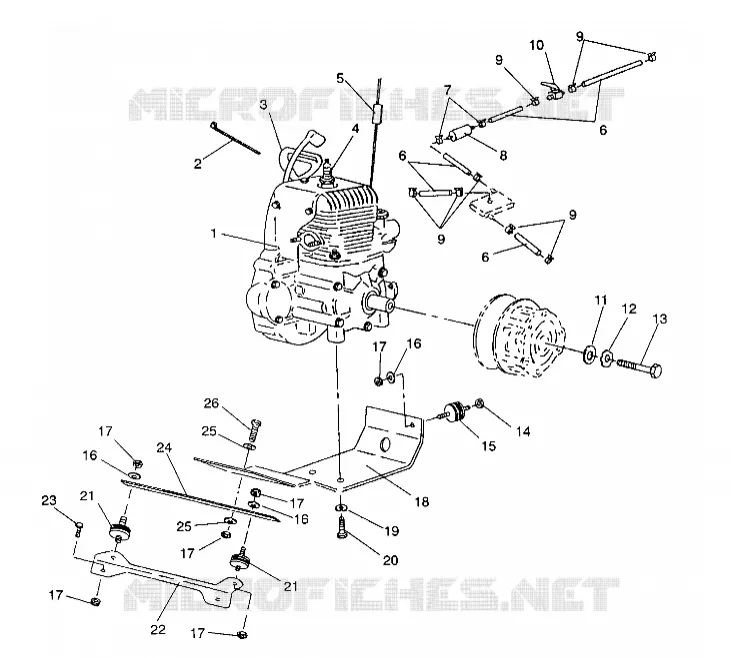

ENGINE MOUNTING STARLITE GT / 0933127 (4923232323022A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM LITE GT/0933133 AND STARLITE GT/0933127 (4923232323017A)
by
EXHAUST SYSTEM LITE GT/0933133 (4923232323023A)
ENGINE MOUNTING STARLITE GT / 0933127 (4923232323022A)
1
ENG.EC25PS-07 [No Longer Available]
1211520
Not Available
2
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
3
HANDLE-RECOIL
5430520
Not Available
4
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
5
CABLE THROTTLE Substituted by 7080556
7080410
Not Available
6
FUEL LINE 1/4"SAE #30R7
8450040
8450040-600
$136,49 Unit Price incl. VAT
7
CLAMP HOSE
7080490
Not Available
8
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
9
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
10
VALVE FUEL SHUT-OFF
7052039
Not Available
11
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
12
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
13
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
14
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
15
MOUNT-MTR.
3110020
Not Available
16
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
17
Nut
7542403
Not Available
18
PLATE ENG.MT BLK.
5222539067
Not Available
19
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
20
BOLT
7512539
$7,34 Unit Price incl. VAT
21
MOUNT MOTOR
3110028
Not Available
22
CHANNEL ENG.MT.
5222540067
Not Available
23
BOLT(10) [CALIPER MOUNTING]
7512457
$7,34 Unit Price incl. VAT
24
STRAP ENG.MT BLK.
5211266067
Not Available
25
WASHER-LOCK(10)
7571611
$6,29 Unit Price incl. VAT
26
BOLT. 3/8”X1-1/4” [2011-2015]
7512405
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
