1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB
4
Parts Catalog
GEAR SELECTOR
5
Parts Diagram
Parts Catalog
FUEL PUMP
by
SHOCK MOUNTING

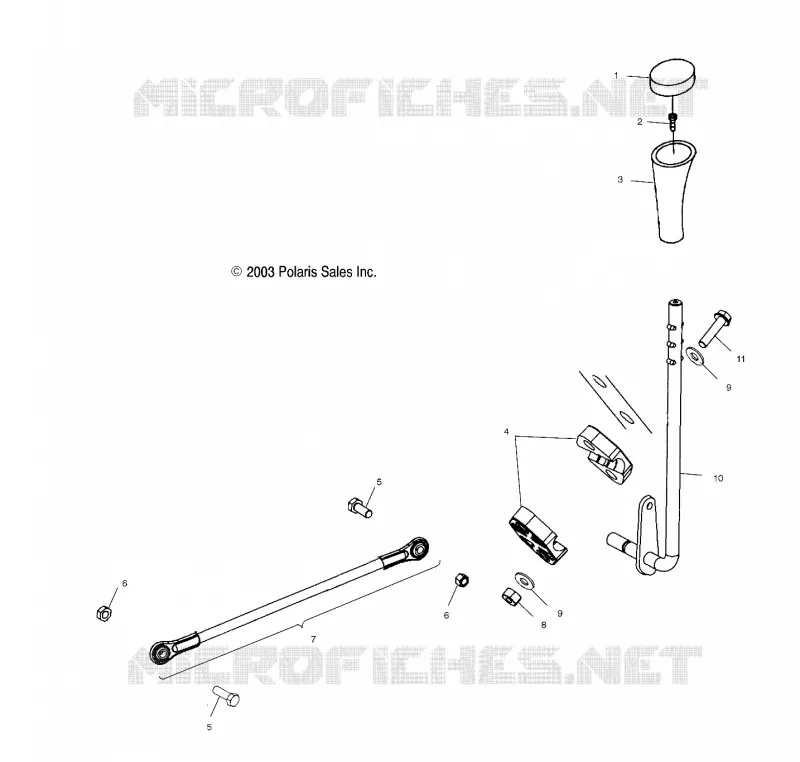

GEAR SELECTOR
1
2
3
4
5
5
6
6
7
8
9
9
10
11
1
2
3
4
5
6
7
8
9
10
11
1
Cover Drum Shift
5412003
$23,09 Unit Price incl. VAT
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
KNOB GEAR SILECTOR SHIFT
5411007
3233198
$68,24 Unit Price incl. VAT
4
MOUNT-GEAR SELECTOR HI/REV
5433103
Not Available
5
SCREW
7515175
$7,34 Unit Price incl. VAT
6
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
7
Asm. Linkage
1821135
$115,49 Unit Price incl. VAT
8
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
9
WASHER(10) Substituted by 7558402
7555770
7558402
$1,56 Unit Price incl. VAT
10
Selector Gear
1013315067
Not Available
11
BOLT(10) Substituted by 7515352
7515306
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
