1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN TOURING 570 EFI EPS MD
4
Parts Catalog
SEAT
5
Parts Diagram
Parts Catalog
WHEELS, FRONT TIRE AND BRAKE DISC
by
BODY, STORAGE BOX, REAR

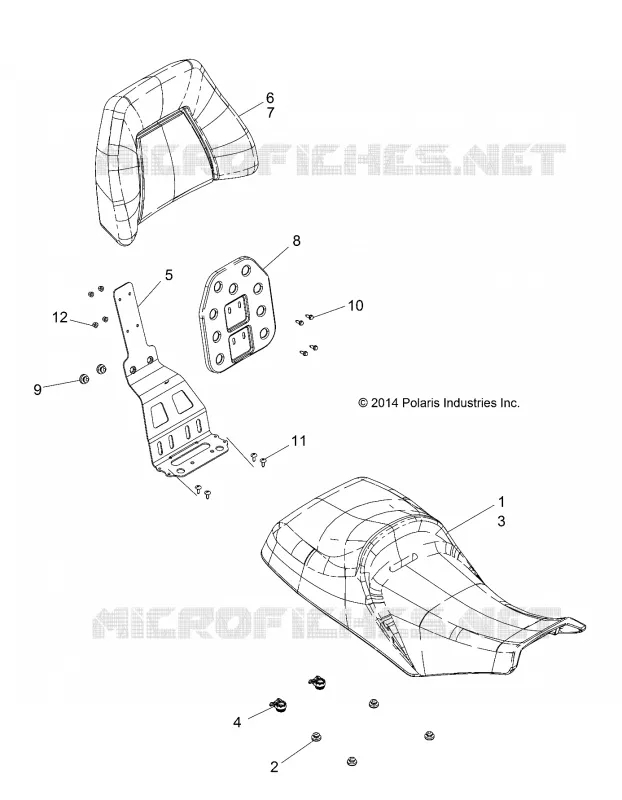

SEAT
1
ASM-SEAT OPERATOR TOURING [INCL. 1-3] [FROM 2/1/2017]
2687957
Not Available
1
ASM. SEAT OPERATOR
2685589
$824,24 Unit Price incl. VAT
2
BUMPER-RUBBER
5412067
$7,34 Unit Price incl. VAT
3
ASM. COVER W/DECAL
2685590
$278,24 Unit Price incl. VAT
3
ASM-COVER SEAT TRG WHITE DECAL
2687958
$262,49 Unit Price incl. VAT
4
GROMMET SEAT LATCH [TO 11/20/2019]
5415539
$6,29 Unit Price incl. VAT
5
SUPPORT SEAT BACK MATTE BLACK
1020037458
$246,74 Unit Price incl. VAT
6
ASM. PASSENGER SEAT BACK
2684898
$451,49 Unit Price incl. VAT
6
ASM-SEAT PASSENGER BACK [INCL. 6 7] [FROM 2/1/2017]
2687960
Not Available
7
ASM-SEAT COVER PASS BACK [FROM 2/1/2017]
2687962
Not Available
7
ASM. PASSENGER SEAT BACK COVER
2684113
$257,24 Unit Price incl. VAT
8
PLATE SEAT BACK SUPPORT
5251351329
Not Available
9
BUMPER-RUBBER
5412067
$7,34 Unit Price incl. VAT
10
SCREW
7512253
$7,34 Unit Price incl. VAT
11
SCR-1/4-20X.75 TR/TX-M
7518280
$2,09 Unit Price incl. VAT
12
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
