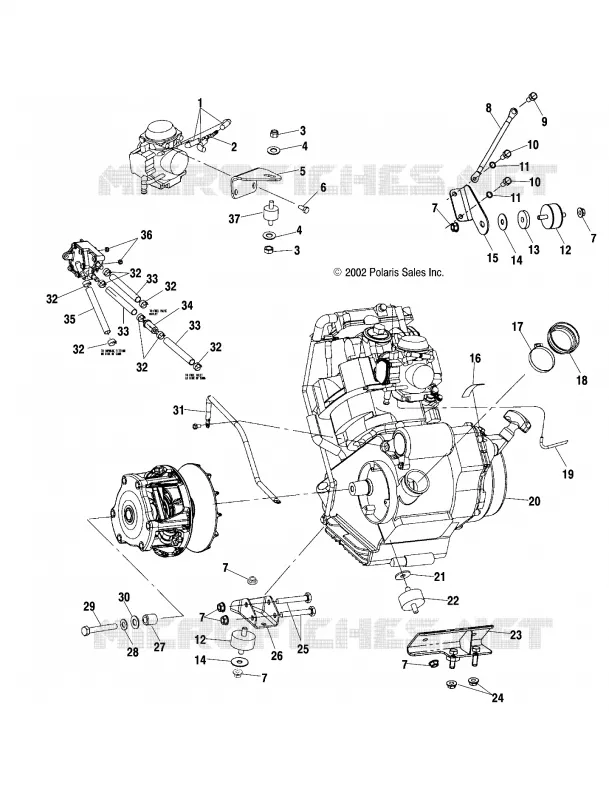

ENGINE MOUNTING FOR TRAIL BOSS 330 - A03CA32AA FROM 2003

ENGINE MOUNTING

1

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

2

FITTING-TEE 1/4-1/4-BRB-NY

7052075

$17,84 Unit Price incl. VAT

3

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

4

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

5

BRKT CARB MOUNT BLK

5243747067

Not Available

6

SCREW & WASHER(10)

3084205

$7,34 Unit Price incl. VAT

7

NUT FLANGE LOCK

7547108

$9,44 Unit Price incl. VAT

8

CABLE GND-ENGINE

4010132

Not Available

9

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$2,09 Unit Price incl. VAT

10

Bolt

7512315

$9,44 Unit Price incl. VAT

11

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

12

MOUNT RUBBER ENGINE 45 DURO

3021181

$83,99 Unit Price incl. VAT

13

INSULATOR MOTOR MT.

5430802

$52,49 Unit Price incl. VAT

14

WASHER-.390X1.12X.060 FL-Y

7555823

$7,34 Unit Price incl. VAT

15

Bracket Engine Mount Top (If built after 2/17/03)

5247344

Not Available

15

BRKT ENGINE MOUNT TOP 325 BLK

5243307067

Not Available

16

DECAL DRAIN RECOIL

7078577

Not Available

17

CLAMP-NARROW BAND 1.38/2.38

7080511

$9,44 Unit Price incl. VAT

18

BOOT-CLUTCH INTAKE

5411721

Not Available

19

FUEL LINE-100 CENTIMETERS

8360009100

$83,99 Unit Price incl. VAT

20

Asm. Engine Trail Boss 330

1211750

Not Available

21

WASHER FLAT

7555815

$7,34 Unit Price incl. VAT

22

Mount Rubber

3110046

Not Available

23

MOUNT ENGINE REAR BLK

1013413067

Not Available

24

Nut Flange Lock [To 9/01/03]

7547089

$9,44 Unit Price incl. VAT

25

SCR-3/8-24X2 3/4HX HD CP GR5-Y

7515417

$9,44 Unit Price incl. VAT

26

Mount Lower Front (If built after 2/17/03)

5247342

Not Available

26

MOUNT-LOWER FRONT 325 BLK

5243288067

Not Available

27

BUSHING-.437 X.770 X.50

5430261

$13,64 Unit Price incl. VAT

28

WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]

7575202

$9,44 Unit Price incl. VAT

29

BOLT(10) *

7512566

$52,49 Unit Price incl. VAT

30

WASHER-.440X1.25X.190 FL-Y

5210748

$7,34 Unit Price incl. VAT

31

Cable Battery/Engine

4010095

Not Available

32

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

33

Line Fuel

8450103600

Not Available

34

FILTER

2530009

$12,59 Unit Price incl. VAT

35

FUEL LINE-1/4 ID (SVC) 600 CM [BULK]

8450040600

$136,49 Unit Price incl. VAT

36

NUT-M5X.8 HX NYL-Y

7546601

$2,09 Unit Price incl. VAT

37

MOUNT CARBURETOR

3110050

$19,94 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
