FRONT SUSPENSION STRUT FOR SPORTSMAN 400 HO 4X4/SE - A14MH46AA/AH/MS46AA FROM 2014

SUSPENSION, A-ARM AND STRUT MOUNTING

REAR SUSPENSION

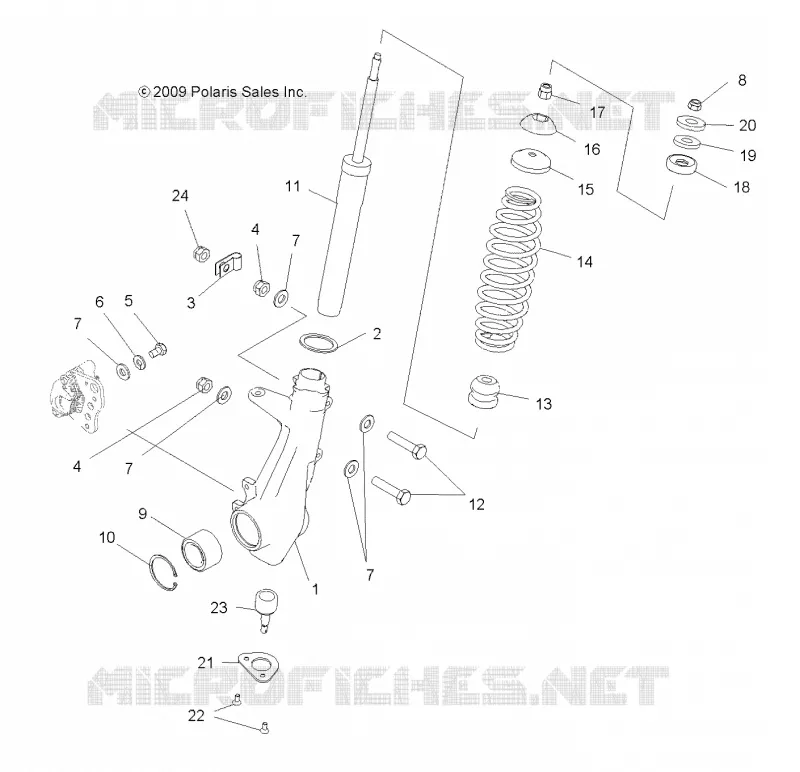

FRONT SUSPENSION STRUT

1

Asm. Hubstrut RH [INCL. 5 6 17-19]

1822826

$572,24 Unit Price incl. VAT

1

Asm. Hubstrut LH [INCL. 5 6 17-19]

1822825

$572,24 Unit Price incl. VAT

2

WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]

5211115

$7,34 Unit Price incl. VAT

3

CLAMP-CABLE

7080367

$4,19 Unit Price incl. VAT

4

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

5

SCREW CAP(10) [CALIPER MOUNTING]

7512365

$2,09 Unit Price incl. VAT

6

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

7

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

8

NUT-1/2-20 NYLOK THIN HT-Y

7547104

$2,09 Unit Price incl. VAT

9

BEARING-WHEEL 35X64X37MM

3514634

$73,49 Unit Price incl. VAT

10

RING-RETAINING 2.500 INTERNAL

7710507

$4,19 Unit Price incl. VAT

11

Strut Front [MS46AX]

7043974

$225,74 Unit Price incl. VAT

11

STRUT-FRONT 18X30MM 184.7MM LT

7041762

$230,99 Unit Price incl. VAT

12

BOLT(10)

7512312

$2,09 Unit Price incl. VAT

13

BUMPER-MCU 17.8MM ID

5412665

$12,59 Unit Price incl. VAT

14

Spring Compression Black [MS46AX]

7043950067

$157,49 Unit Price incl. VAT

14

SPRING COMPRESSION BLACK

7043247067

$173,24 Unit Price incl. VAT

15

RETAINER-SPRING STRUT

5243364

$36,74 Unit Price incl. VAT

16

PIVOT-BALL BOTTOM DELRIN

5432871

$19,94 Unit Price incl. VAT

17

SPACER-1/2-20 STRUT

5132062

$36,74 Unit Price incl. VAT

18

PIVOT-BALL TOP DELRIN

5432872

$19,94 Unit Price incl. VAT

19

SPACER-RUBBER

5810291

$7,34 Unit Price incl. VAT

20

WSHR-.500X1.50-12GA-Y

7555749

$2,09 Unit Price incl. VAT

21

BRACKET-BALL JOINT

5211121

$62,99 Unit Price incl. VAT

22

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$2,09 Unit Price incl. VAT

23

BALL-JOINT GREASELESS STRUT

7061158

$52,49 Unit Price incl. VAT

24

NUT

7542344

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
