1
Engine displacement
500
2
Year
2010
3
Trim
RANGER 4X4 500 EFI - R10TH50AG/AR
4
Parts Catalog
STEERING
5

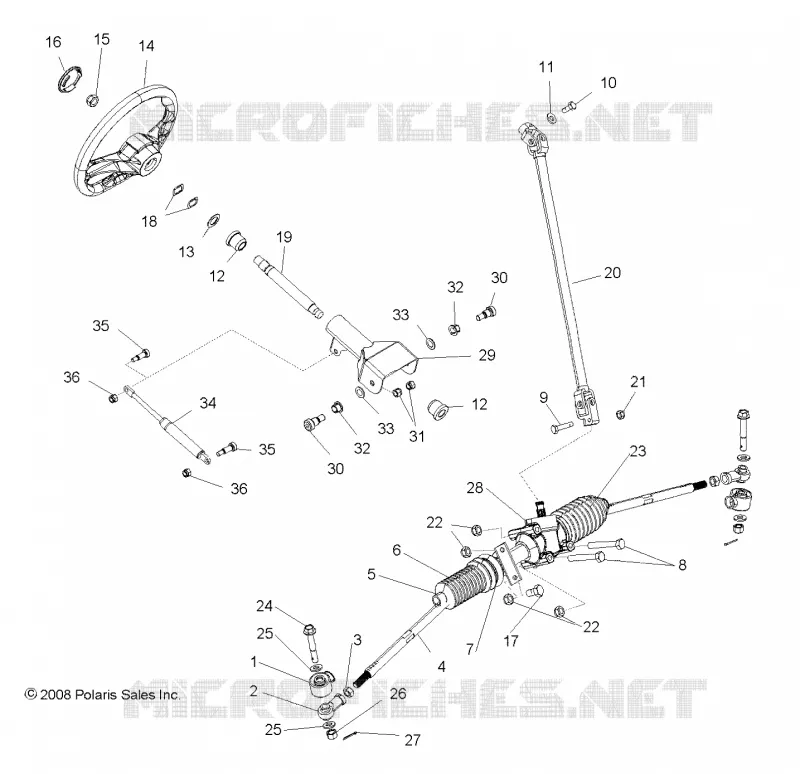

Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUALS
by
FRONT SUSPENSION CONTROL ARMS
STEERING
1
2
3
1
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
25
26
27
28
29
30
30
31
32
32
33
33
34
35
35
36
36
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
3
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BELLOWS CLAMP SMALL
7080978
$4,19 Unit Price incl. VAT
6
BOOT PASSENGER SIDE RACK
5412013
$104,99 Unit Price incl. VAT
7
CLAMP LARGE BELLOWS
7080979
$10,49 Unit Price incl. VAT
8
BOLT-M8X1.25X95 HX BOLT
7518935
$3,14 Unit Price incl. VAT
9
SCREW
7517827
$12,59 Unit Price incl. VAT
10
SCR-HH-M8X1.25X30 8.8 ZY3
7517924
$8,39 Unit Price incl. VAT
11
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
12
BUSHING SHAFT STEERING
5434106
$16,79 Unit Price incl. VAT
13
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
14
WHEEL-STEERING 14# [ED4FA/ED4DA][SD4CA]
1823622
$246,74 Unit Price incl. VAT
15
NUT
7547188
$10,49 Unit Price incl. VAT
16
CAP-STEERING WHEEL
5436536
$62,99 Unit Price incl. VAT
17
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
$7,34 Unit Price incl. VAT
18
WASHER WAVE
7556063
$5,76 Unit Price incl. VAT
19
Shaft Steering Upper
1823357
$787,49 Unit Price incl. VAT
20
Shaft Steering w/Joints Lower [AB][AG][AH][AL][AM][AR][AS][AV][AZ]
1823356
$299,24 Unit Price incl. VAT
21
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
22
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
23
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
24
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
25
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
26
NUT-M10X1.25-HX-LOCK-Y(10)
7547177
7548155
$1,56 Unit Price incl. VAT
27
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
28
Asm. Gear Box Steering [Incl. 1-7 23]
1823338
$1 018,49 Unit Price incl. VAT
29
Tilt Steering
1016403521
Not Available
30
SCR-SH-SHDR 0.5X0.5 3/8-16 ZY3
7517607
$10,49 Unit Price incl. VAT
31
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
32
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
33
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
34
Asm. Shock Oil Locking
7043523
7043810
$173,24 Unit Price incl. VAT
35
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
$4,19 Unit Price incl. VAT
36
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
