1
Engine displacement
550
2
Year
2001
3
Trim
550 SPORT TOURING
4
Parts Catalog
FRONT SUSPENSION AND SKI
5
Parts Diagram
Parts Catalog
BRAKE
by
SKI

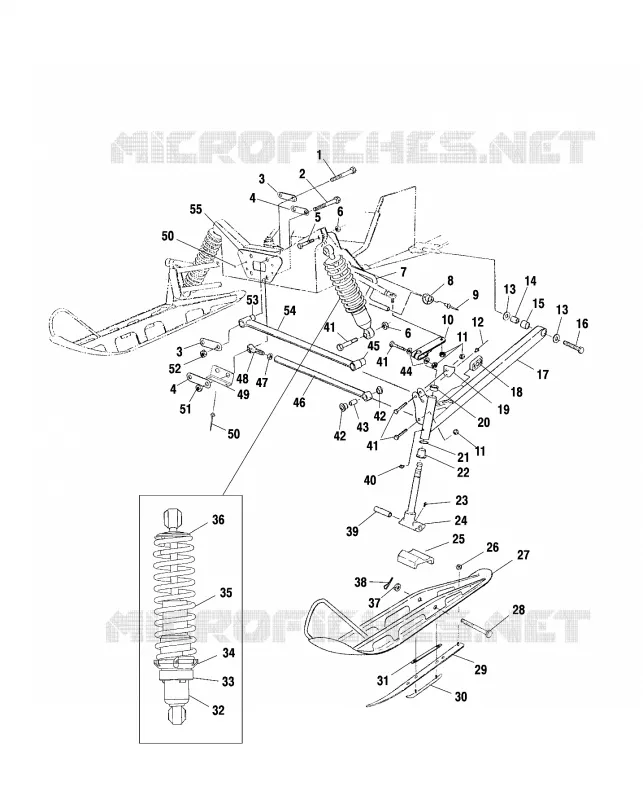

FRONT SUSPENSION AND SKI
1
2
3
3
4
4
5
6
6
7
8
9
10
11
11
12
13
13
14
15
16
17
17
17
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
41
42
42
43
44
45
46
47
48
49
50
50
51
52
53
54
55
1
2
3
3
4
4
5
6
6
7
8
9
10
11
11
12
13
13
14
15
16
17
17
17
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
41
42
42
43
44
45
46
47
48
49
50
50
51
52
53
54
55
1
2
3
3
4
4
5
6
6
7
8
9
10
11
11
12
13
13
14
15
16
17
17
17
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
41
42
42
43
44
45
46
47
48
49
50
50
51
52
53
54
55
1
BOLT(10)
7512582
Not Available
2
BOLT(10)
7512684
Not Available
3
STRAP-SPACER TOP
5211344
$13,64 Unit Price incl. VAT
4
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
5
SCREW
7515415
$2,09 Unit Price incl. VAT
6
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
7
BAR SWAY 9/16 X-10 BLK (XLT SKS)
5224743067
$112,86 Unit Price incl. VAT
8
BUSHING SWAY BAR (XLT SKS)
5432412
$27,29 Unit Price incl. VAT
9
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
10
ARM STRG BLK
5241560067
Not Available
11
Nut
7542403
Not Available
12
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
13
WASHER
7555721
$2,09 Unit Price incl. VAT
14
BUSHING
5010310
$19,94 Unit Price incl. VAT
15
PIVOT RUBBER
5410872
$15,74 Unit Price incl. VAT
16
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
17
ARM ASM TRLG LH Substituted by 1822506-067 (Incl. 16 17)
1822506
Not Available
17
ARM ASM TRLG RH Substituted by 1822507-067 (Incl. 16 17)
1822507
Not Available
18
SLIDE SWAYBAR 9/16
5432674
Not Available
19
STOP LH STRG BLK.
5241569067
$13,64 Unit Price incl. VAT
19
STOP RH STRG BLK.
5241570067
$13,64 Unit Price incl. VAT
20
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
21
BUSHING
7556509
$3,14 Unit Price incl. VAT
22
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
23
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
24
SHAFT SPINDLE TRLG BLK
6230102067
$440,99 Unit Price incl. VAT
25
STOP RUBBER
5411083
$26,24 Unit Price incl. VAT
26
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
27
SKI WELD
1820430067
Not Available
28
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
29
PLATE SKAG
1011829067
$74,54 Unit Price incl. VAT
30
SKAG BLK.
1820318067
$68,24 Unit Price incl. VAT
31
SHIM-SKAG PLATE BLK
5245145067
Not Available
32
SHOCK GAS IFS SELECT
7041496
Not Available
33
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
34
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
35
SPRING COMP. IFS 100# BLK
7041551067
$115,49 Unit Price incl. VAT
36
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
37
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
38
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
39
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
40
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
41
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
42
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
43
BUSHING
5010127
$12,59 Unit Price incl. VAT
44
Washer .105
7555832
$4,19 Unit Price incl. VAT
45
BUSHING RADIUS ROD PIVOT
5411099
$20,99 Unit Price incl. VAT
46
ROD RAD LOWER BLK (XLT SKS)
1822410067
Not Available
47
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
48
RODEND 1/2 W/LINER 1.05 WIDE Substituted by 7061052
7061027
7061052
$99,74 Unit Price incl. VAT
49
BRKT. RADIUS ROD BOTTOM
5242578
$68,24 Unit Price incl. VAT
50
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
51
NUT FLEX (10)
7542703
Not Available
52
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
53
BUSHING PIVOT
5411095
$27,29 Unit Price incl. VAT
54
ROD RAD.UPPER FIXED
1822435
Not Available
55
BRACE BLKHD/STRG BLK.
5211589067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
