1
Engine displacement
0
2
Year
1993
3
Trim
CLASSIC - 0930864
4
Parts Catalog

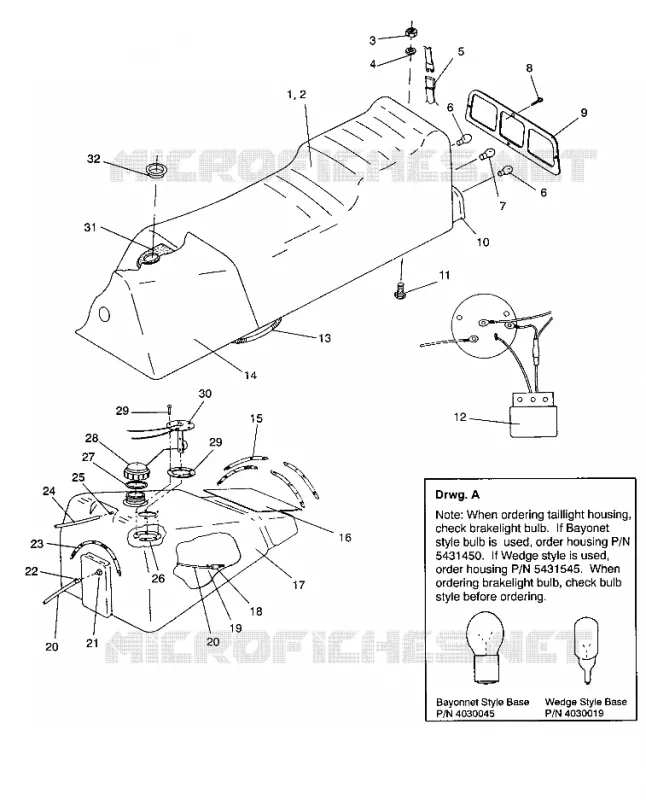

SEAT GAS TANK ASSEMBLY CLASSIC TOURING / 0930865 (4922952295005A)
5
Parts Diagram
Parts Catalog
SEAT GAS TANK ASSEMBLY CLASSIC / 0930864 (4922952295004A)
by
NOSEPAN CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295007A)
SEAT GAS TANK ASSEMBLY CLASSIC TOURING / 0930865 (4922952295005A)
1
2
3
4
5
6
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
29
30
31
32
1
2
3
4
5
6
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
29
30
31
32
1
SEAT ASM Substituted by 2200746
2681562
Not Available
2
COVER SEAT(CLASSIC#92-3) Substituted by 2200743
2681563
Not Available
3
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
4
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
5
BUCKLE&STRAP (Trail)
2681291
Not Available
6
BULB TAILLIGHT(10)
4030024
$9,44 Unit Price incl. VAT
7
BULB BRAKELIGHT
4030045
Not Available
8
SCREW(10)
7511840
Not Available
9
LENS TAILLIGHT
5430423
Not Available
10
HOUSING TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Not Available
10
HOUSING TAILLIGHT (See Drwg. A)
5431450
$31,80 Unit Price incl. VAT
11
BOLT
7512103
$6,29 Unit Price incl. VAT
12
RECTIFIER FUEL
4060094
Not Available
13
HARNESS TAILLIGHT
2460370
$50,28 Unit Price incl. VAT
14
COVER TANK(CLASSIC#92-3) Substituted by 2200743
2681564
Not Available
15
SPRING TANK
7042033
Not Available
16
INSERT TANKCOVER
5850098
Not Available
17
TANK ASM FUEL
2511199
Not Available
18
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
19
RING COMPRESSION
7080402
$3,14 Unit Price incl. VAT
20
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
21
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
22
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
23
SPRING TANK FRONT
7042020
$27,29 Unit Price incl. VAT
24
LINE VENT (38.0##) Substituted by 8360009-600
5521087
8360009-600
$83,99 Unit Price incl. VAT
25
VENT FITTING TANK Substituted by 5430579
5430669
Not Available
26
MTG.FLANGE FUELTANK Substituted by 5244067
5211308
Not Available
27
GASKET GAS CAP
5810513
$15,74 Unit Price incl. VAT
28
CAP FUELTANK W/GASKET
2511226
Not Available
29
HDWE.PKG SEND.UNIT
2410012
Not Available
30
SEND.UNIT W/HDWE.PKG.
2410015
Not Available
31
FOAM FILLER
5810201
Not Available
32
GROMMET
5410644
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
