FRONT TORQUE ARM 440 XCR 0951660 (4929112911B012) FOR 440 XCR - 0951660 FROM 1995

SUSPENSION ASSEMBLY 440 XCR 0951660 (4929112911B011)

ENGINE MOUNTING 440 XCR 0951660 (4929112911C003)

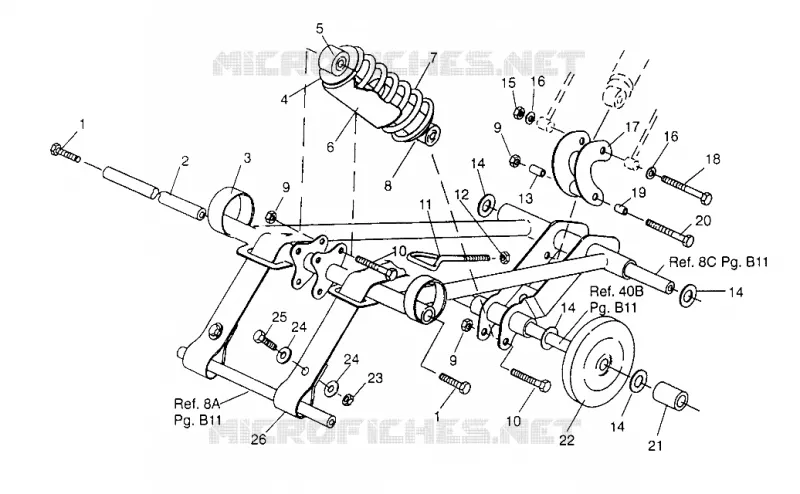

FRONT TORQUE ARM 440 XCR 0951660 (4929112911B012)

1

BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)

7515493

Not Available

2

SHAFT MOUNTING

5010149

Not Available

3

ARM FR.TORQUE BLK.

1540829067

Not Available

4

RETAINER SPRING SLOTTED

5020618

$36,74 Unit Price incl. VAT

5

SHOCK GAS MIDDLE (Incl. 1-21)

7041344

Not Available

6

SHIELD SPRING

5430671

$47,24 Unit Price incl. VAT

7

SPRING BLACK COMP.

7041253067

Not Available

8

RETAINER SPRING BODY

5020617

Not Available

9

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

10

SCREW

7515415

$2,09 Unit Price incl. VAT

11

BOLT EYE

7010050

Not Available

12

NUT FLANGE

7542321

$2,09 Unit Price incl. VAT

13

BUSHING PIVOT TUBE

5020561

$2,61 Unit Price incl. VAT

14

BUSHING-.781 X1.250X.060-Y

7556301

$6,29 Unit Price incl. VAT

15

NUT FLEX LOC (10)

7542402

$11,54 Unit Price incl. VAT

16

WASHER(10) Substituted by 7555806

7555720

$1,56 Unit Price incl. VAT

17

SHOCK ARM WELD BLK.

1540791067

Not Available

18

BOLT(10)

7515525

Not Available

19

SPACER

5333028

$2,61 Unit Price incl. VAT

20

BOLT

7515438

$9,44 Unit Price incl. VAT

21

SPACER OUTER

5332784

Not Available

22

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

23

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

24

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

25

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$7,34 Unit Price incl. VAT

26

STRAP LIMITER FR.

5410840

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
