1
Engine displacement
600
2
Year
2017
3
Trim
600 VOYAGEUR 144
4
Parts Catalog
FRONT WISHBONES
5
Parts Diagram
Parts Catalog
STEERING, SKI ASM.
by
TOOLS, BELT HOLDER OWNERS MANUAL

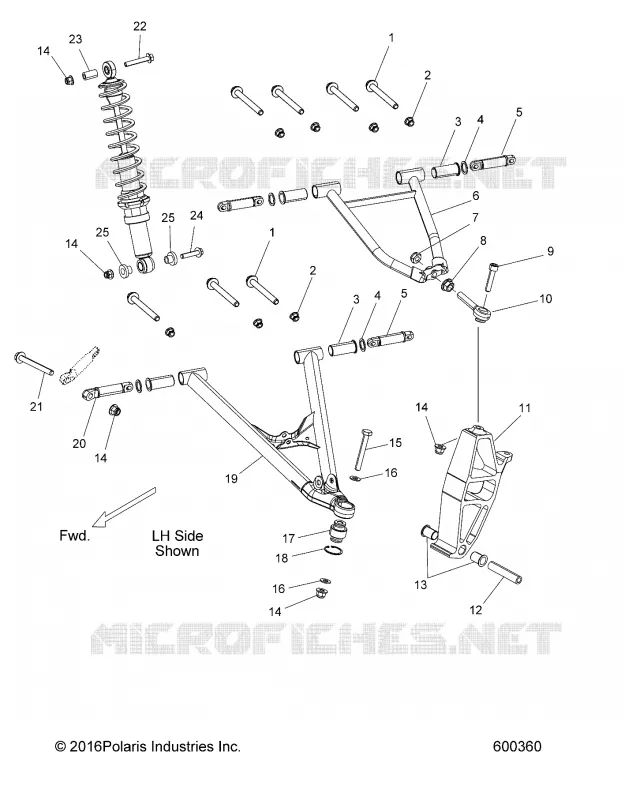

FRONT WISHBONES
1
1
2
2
3
3
4
4
5
5
6
6
7
8
9
10
11
11
12
13
14
14
14
14
14
15
16
16
17
18
19
19
20
21
22
23
24
25
25
1
2
3
4
5
6
7
8
9
10
11
12
12
13
1
STUD
7519204
$36,74 Unit Price incl. VAT
2
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
3
BUSHING PIVOT
5450297
$6,29 Unit Price incl. VAT
4
WASHER
7556758
$6,29 Unit Price incl. VAT
5
SHAFT PIVOT
5139521
5140556
$52,49 Unit Price incl. VAT
6
CONTROL ARM LH UPPER MATTE BLACK [ALSO ORDER FASTENERS 4]
1824080458
$262,49 Unit Price incl. VAT
6
CONTROL ARM RH UPPER MATTE BLACK [ALSO ORDER FASTENERS 4]
1824081458
$299,24 Unit Price incl. VAT
7
NUT-HEX-M12X1.5 8 ZOD NYL
7547464
$6,29 Unit Price incl. VAT
8
NUT-HXFL M12X1.5 ZOD
7547490
$7,34 Unit Price incl. VAT
9
SCR-SH-M10X1.5X45 12.9 ZFK
7519246
$7,34 Unit Price incl. VAT
10
ROD END-M12X2.812 30�
7061178
$89,24 Unit Price incl. VAT
11
Asm. Spindle LH Metric RMK [INCL. 20]
1823897
$472,49 Unit Price incl. VAT
11
Asm. Spindle RH Metric RMK [INCL. 20]
1823898
$472,49 Unit Price incl. VAT
12
BUSHING
5136910
$13,64 Unit Price incl. VAT
13
BUSHING SKI PIVOT
5438460
$27,29 Unit Price incl. VAT
14
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
15
SCREW M10x75 HCS
7519015
$10,49 Unit Price incl. VAT
16
WASHER
7555806
$1,56 Unit Price incl. VAT
17
KIT SPHERICAL BEARING LOWER
2204229
$54,59 Unit Price incl. VAT
18
RING RETAINING
7710539
$4,19 Unit Price incl. VAT
19
CONTROL ARM LOWER LH MATTE BLACK [ALSO ORDER FASTENERS 3 4]
1824368458
$299,24 Unit Price incl. VAT
19
CONTROL ARM LOWER RH MATTE BLACK [ALSO ORDER FASTENERS 3 4]
1824369458
$299,24 Unit Price incl. VAT
20
SHAFT PIVOT LOWER CONTROL ARM FRONT
5139607
5140557
$52,49 Unit Price incl. VAT
21
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$9,44 Unit Price incl. VAT
22
SCREW
7518941
$7,34 Unit Price incl. VAT
23
BUSHING
5137360
$7,34 Unit Price incl. VAT
24
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$12,59 Unit Price incl. VAT
25
SPACER-10.2IDX12.62OD
5136530
$8,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
