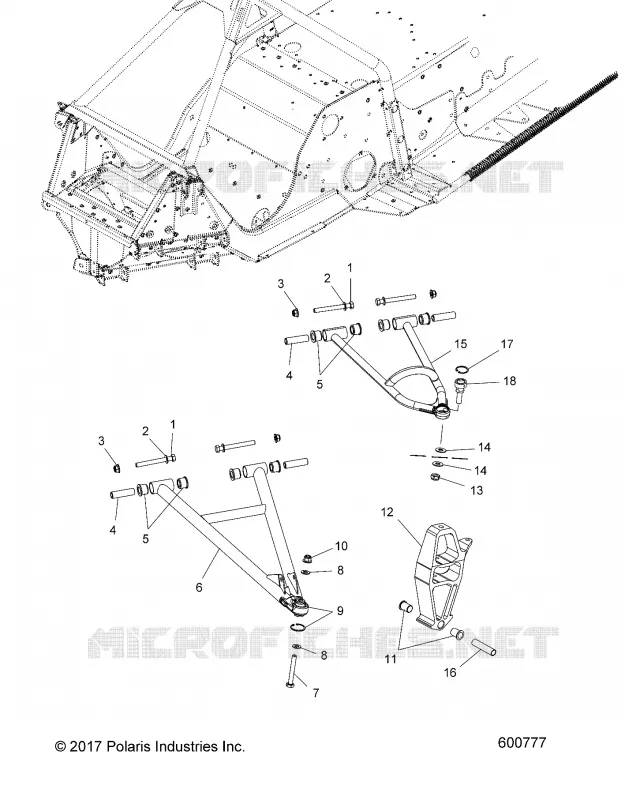

FRONT SUSPENSION, CONTROL ARMS AND SPINDLE FOR 600 RACER FROM 2019

FRONT SUSPENSION, CONTROL ARMS AND SPINDLE

1

SCR-3/8-24X3.50 HX/CP GR8 Y

7518898

$7,34 Unit Price incl. VAT

2

WASHER-FL.390X.750X.065-Y

7556188

$6,29 Unit Price incl. VAT

3

Nut Flanged Lock

7547263

$6,29 Unit Price incl. VAT

4

SHAFT PIVOT

5133860

$18,89 Unit Price incl. VAT

5

BUSHING CONTROL ARM

5438764

$16,79 Unit Price incl. VAT

6

LOWER CONTROL ARM RACE RH MATE BLACK [ARM ONLY]

1823791458

$398,99 Unit Price incl. VAT

6

LOWER CONTROL ARM RACE LH MATTE BLACK [ARM ONLY]

1823790458

$398,99 Unit Price incl. VAT

7

SCREW M10x75 HCS

7519015

$10,49 Unit Price incl. VAT

8

WASHER

7555806

$1,56 Unit Price incl. VAT

9

RING RETAINING

7710539

$4,19 Unit Price incl. VAT

9

KIT SPHERICAL BEARING LOWER

2204229

$54,59 Unit Price incl. VAT

10

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

11

BUSHING SKI PIVOT

5438460

$27,29 Unit Price incl. VAT

12

ASM. SPINDLE RACE TALL RH MBLK [INCL. 18]

1824889458

$419,99 Unit Price incl. VAT

12

ASM. SPINDLE RACE TALL LH MBLK [INCL. 18]

1824888458

$419,99 Unit Price incl. VAT

13

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

14

WASHER-7/16 SAE STF THRU-HRD-Y

7556212

$15,74 Unit Price incl. VAT

15

UPPER CONTROL ARM RACE RH MATTE BLACK [ARM ONLY]

1824685458

$351,74 Unit Price incl. VAT

15

UPPER CONTROL ARM RACE LH MATTE BLACK [ARM ONLY]

1824684458

$351,74 Unit Price incl. VAT

16

BUSHING

5136910

$13,64 Unit Price incl. VAT

17

RING RETAINING

7710642

$4,19 Unit Price incl. VAT

18

BEARING SPHERICAL UPPER CONTROL ARM

7061179

$47,24 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
