1
Engine displacement
500
2
Year
2000
3
Trim
500 WIDETRAK LX
4
Parts Catalog

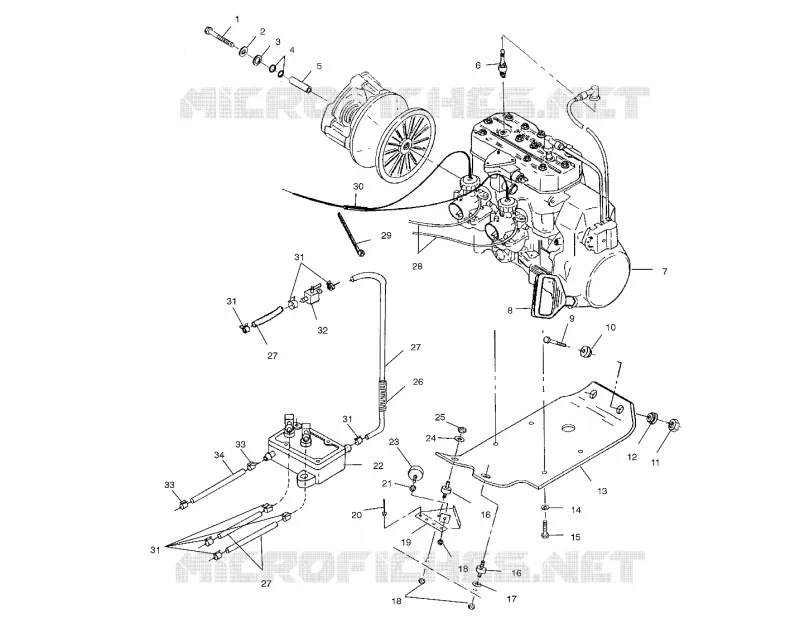

ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
SHIFT LINKAGE
by
FUEL PUMP
ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
20
21
22
23
24
25
26
27
27
27
28
29
30
31
31
31
31
32
33
33
34
1
BOLT(10)
7512565
$36,74 Unit Price incl. VAT
2
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
O-RING CLUTCH BOLT
5410507
$2,09 Unit Price incl. VAT
5
SPACER CLUTCH BOLT
5020513
$60,89 Unit Price incl. VAT
6
SPARKPLUG RN3C(8)
3070166
$7,34 Unit Price incl. VAT
7
ENGINE-EC50PL230 SB (EC50PL230) (See Footnote)
3086509
Not Available
8
HANDLE RECOIL Substituted by 5431499-070
5431499
$26,24 Unit Price incl. VAT
9
SCREW
7512530
$10,49 Unit Price incl. VAT
10
MOUNT ENGINE RUBBER TOP
5411685
$47,24 Unit Price incl. VAT
11
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
12
MOUNT ENGINE RUBBER BOTTOM
5411686
$52,49 Unit Price incl. VAT
13
PLATE MOTOR MT.
5242496
$230,99 Unit Price incl. VAT
14
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
15
BOLT
7512539
$7,34 Unit Price incl. VAT
16
MOUNT ENGINE
3110061
$125,99 Unit Price incl. VAT
17
WASHER
7555915
$6,29 Unit Price incl. VAT
18
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
19
LIMITER TORQUE
1012048067
$62,99 Unit Price incl. VAT
20
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
21
NUT-3/8-16 HX THIN-Y
7542414
$9,44 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
STOP TORQUE
3110063
$47,24 Unit Price incl. VAT
24
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
25
NUT-3/8-16 FLEXLOCK THIN-Y
7547008
$11,54 Unit Price incl. VAT
26
DESC NOT_AVAILABLE
836005215
Not Available
27
TUBING-ETHER ERETHNE 600CM SVC Substituted by 8350018-160
8350018600
8450117-250
$99,74 Unit Price incl. VAT
28
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
29
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
30
CABLE THROTTLE W/OIL
7080554
$120,74 Unit Price incl. VAT
31
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
32
VALVE FUEL SHUT-OFF (Deluxe)
7052060
Not Available
33
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
34
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
