Engine displacement
400
2
Year
2009
3
Trim
SPORTSMAN 400 HO 4X4 - A09LH46AQ/AX/AZ
4
Parts Catalog
OIL PUMP
5

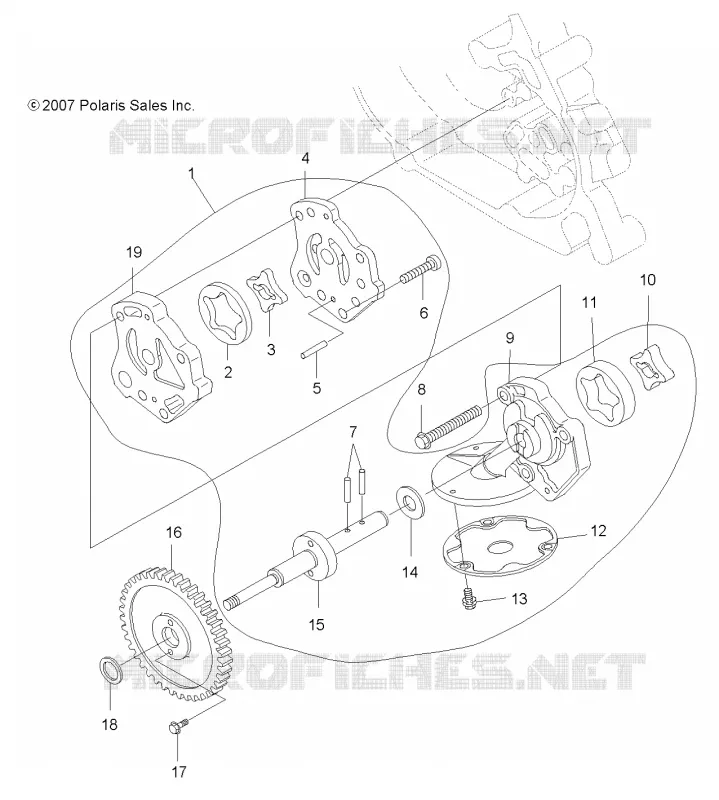

Parts Diagram
Parts Catalog
EXHAUST
by
ENGINE, OIL SYSTEM
OIL PUMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
1
2
3
3
4
4
5
5
6
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
1
Asm. Oil Pump [Incl. 1-7 9-15 19]
3090051
$295,04 Unit Price incl. VAT
2
ROTOR OUTER FEED (Feed)
3084949
$83,99 Unit Price incl. VAT
3
Rotor Inner Feed
3090055
$34,32 Unit Price incl. VAT
4
Pump Oil Case 1
3090000
Not Available
5
PIN DOWEL
3084955
Not Available
6
SCREW(10)
3085535
Not Available
7
PIN DOWEL
3084954
$13,64 Unit Price incl. VAT
8
ASM. BOLT AND WASHER
3082030
7520783
$7,34 Unit Price incl. VAT
9
Pump Oil Case 3
3090054
$99,95 Unit Price incl. VAT
10
Rotor Inner
3090056
$34,32 Unit Price incl. VAT
11
Rotor Outer
3090057
$14,58 Unit Price incl. VAT
12
STRAINER UNIT OIL
3084956
Not Available
13
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
14
WASHER(10)
3084953
$6,29 Unit Price incl. VAT
15
Shaft Pump
3085858
Not Available
16
Gear Pump 2
3090033
$325,49 Unit Price incl. VAT
17
Bolt Flange
3089505
$9,44 Unit Price incl. VAT
18
SPACER (0.8)
3084959
$16,79 Unit Price incl. VAT
18
SPACER (1.0)
3084960
Not Available
18
SPACER (1.2)
3084961
$16,79 Unit Price incl. VAT
19
Pump Oil Case 2
3090053
$35,90 Unit Price incl. VAT
