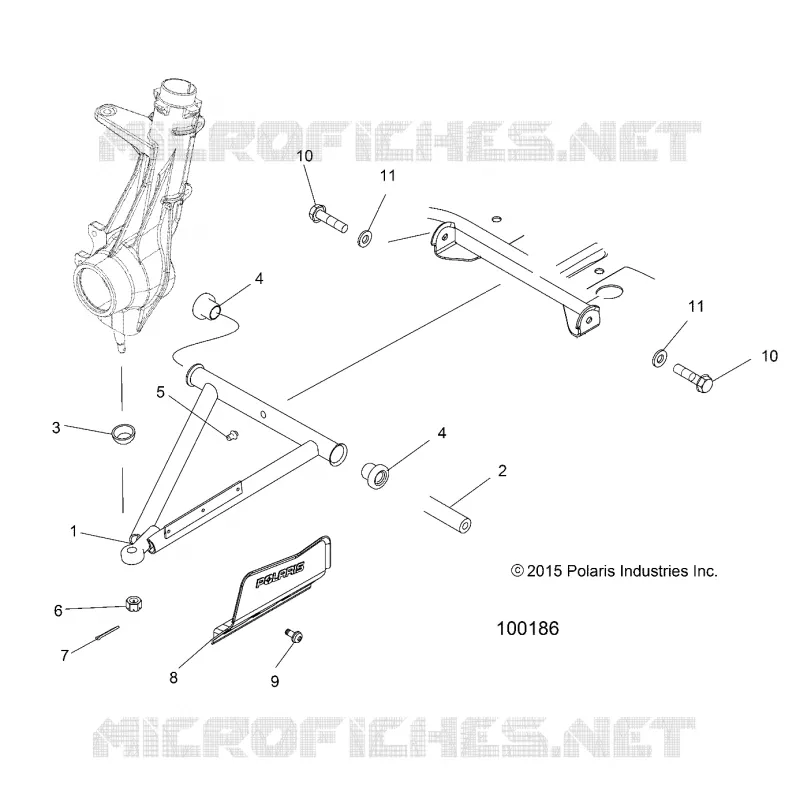

SUSPENSION, A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR CONTROLS
by
WHEELS, FRONT TIRE AND BRAKE DISC
SUSPENSION, A-ARM AND STRUT MOUNTING
1
1
2
3
4
4
5
6
7
8
8
9
10
10
11
11
1
WELD-A-FRAME FLARED RH BLK
1542162458
$230,99 Unit Price incl. VAT
1
WELD-A-FRAME FLARED LH BLK
1542161458
$230,99 Unit Price incl. VAT
2
SHAFT-A-ARM C-BORE
5139929
$52,49 Unit Price incl. VAT
3
BOOT-BALLJOINT GREASELESS STRT
5412658
$9,44 Unit Price incl. VAT
4
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
5
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
6
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
7
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
8
Shield CV Front RH Black
5435029070
$47,24 Unit Price incl. VAT
8
Shield CV Front LH Black
5435028070
$47,24 Unit Price incl. VAT
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
SCR-3/8-24X1 3/4 HX GR5 P30 Y [TO 9/9/2019]
7520340
7521149
$6,29 Unit Price incl. VAT
11
WASHER
7556153
$3,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
