1
Engine displacement
500
2
Year
2010
3
Trim
RANGER 4X4 500 EFI - R10TH50AG/AR
4
Parts Catalog

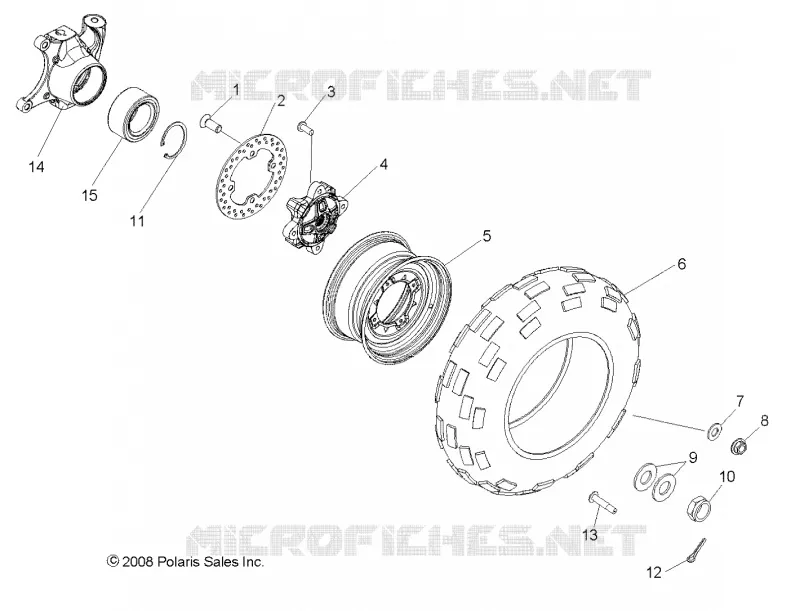

WHEELS, FRONT
5
Parts Diagram
Parts Catalog
REAR SUSPENSION STABILIZER BAR
by
DRIVE TRAIN, MAIN GEARCASE INTERNAL
WHEELS, FRONT
1
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
14
15
15
1
SCR-M10X1.5X20 8.8 TXCS FL ZOD
7518978
$7,34 Unit Price incl. VAT
2
Disc Brake Front
5251565
5254999
$125,99 Unit Price incl. VAT
3
STUD-3/8-24X1.73 PRS FIT-2
7517871
$3,14 Unit Price incl. VAT
4
Hub Wheel Front Black
5136254067
5137127-067
$204,74 Unit Price incl. VAT
4
Hub Wheel Front Black
5137127067
$204,74 Unit Price incl. VAT
5
WELD-RIM FRONT 10 GA BLK [TO 9/1/2023]
1520263067
1523448-067
$158,54 Unit Price incl. VAT
6
TIRE-25X10-12 NHS 489
5413961
5419306
$180,06 Unit Price incl. VAT
6
TIRE F.AT25X10-12 (25x10-12)
5411397
5419306
$180,06 Unit Price incl. VAT
7
WASHER-.385X.88X.075 FL-Y THR
7556242
$4,19 Unit Price incl. VAT
8
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
9
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
10
NUT-CASTLE M18X1.5X13
7547406
$9,44 Unit Price incl. VAT
11
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
12
COTTER PIN-1/8 X 1 1/4-Y
7661402
$3,14 Unit Price incl. VAT
13
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
14
CARRIER WHEEL BEARING RH
5136949
$367,49 Unit Price incl. VAT
14
CARRIER WHEEL BEARING LH
5136948
$262,49 Unit Price incl. VAT
15
Bearing Ball Sealed [Built 1/01/10 to 3/21/10]
3514627
3514699
$73,49 Unit Price incl. VAT
15
BEARING-BALL SEALED 44X72X33.1
3514699
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
