1
Engine displacement
850
2
Year
2015
3
Trim
SPORTSMAN 850 TOURING SP MD
4
Parts Catalog

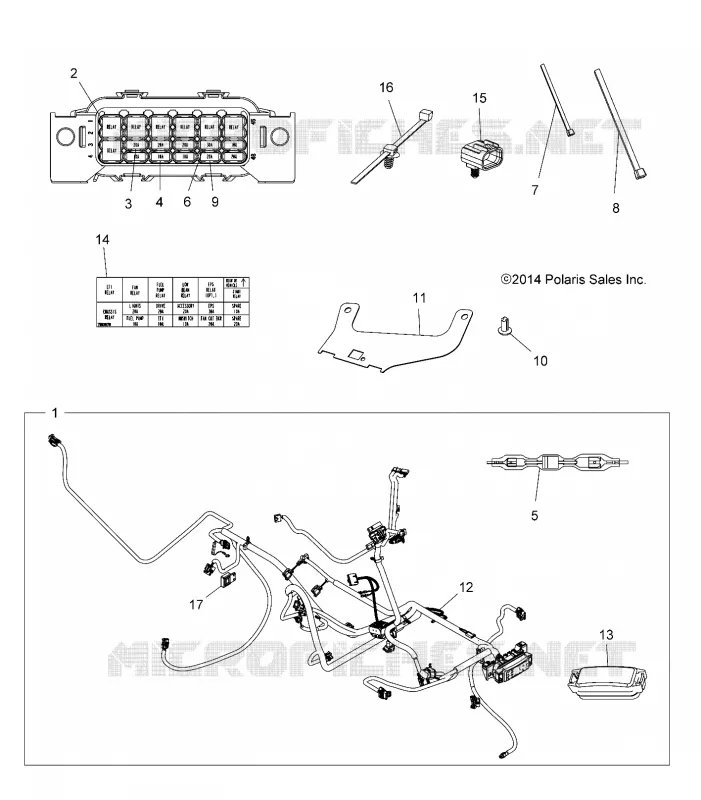

WIRE HARNESS
5
Parts Diagram
Parts Catalog
GAUGES INDICATORS
by
BALANCE SHAFT
WIRE HARNESS
1
1
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
1
2
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
1
KIT HARNESS TPS
2878498
$220,49 Unit Price incl. VAT
1
KIT HARNESS ENGINE TEMP
2878496
$120,74 Unit Price incl. VAT
1
HARNESS MAIN [INCL. 1-6 9 12-15 ALL KITS COVER]
2412595
$1 910,99 Unit Price incl. VAT
2
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
3
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
4
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
5
DIODE - 6 AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
6
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
7
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
8
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
9
BREAKER-CIRCUIT 20 AMP
4011372
$83,99 Unit Price incl. VAT
10
FASTNER-PUSH-ON CLIP .250
7670125
$11,54 Unit Price incl. VAT
11
SCREW-M6X1X14 PN/TX TRI-LOB
7518914
$6,29 Unit Price incl. VAT
11
BRACKET FUSE BLOCK
5257893
$19,94 Unit Price incl. VAT
12
KIT FUSIBLE LINK 1.0 MM
2202670
$68,24 Unit Price incl. VAT
12
KIT FUSIBLE LINK .8 MM
2202607
$73,49 Unit Price incl. VAT
13
COVER- FUSE BOX 48 WAY
4015011
$115,49 Unit Price incl. VAT
14
LABEL FUSE BOX
7180678
Not Available
15
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
16
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
17
MODULE RESISTOR
4014055
2204890
$257,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
