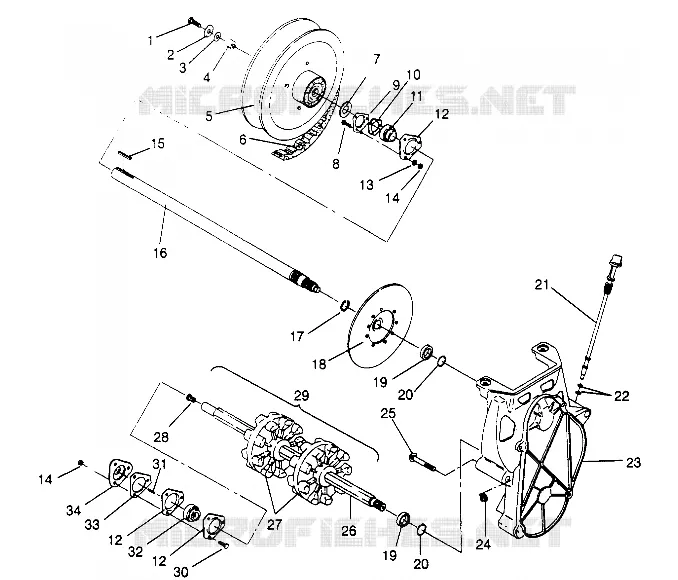

DRIVE TRAIN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 095297 (4929052905B012) FOR 500 SKS - 0952574 FROM 1995

DRIVE TRAIN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 095297 (4929052905B012)

1

BOLT(10)

7515301

Not Available

2

WSHR-.344X.750X.062-Y

7555701

$7,34 Unit Price incl. VAT

3

WASHER FLAT .344x.875x.063

7555734

$1,56 Unit Price incl. VAT

4

SPACER

5020291

Not Available

5

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

6

BELT DRIVE(5)

3211042

$141,21 Unit Price incl. VAT

7

BUSHING

7556509

$3,14 Unit Price incl. VAT

8

BOLT(10) Substituted by 7512377

7512394

$9,44 Unit Price incl. VAT

9

FLANGETTE

5240252

Not Available

10

GASKET JACKSHAFT BLACK

5811095

$4,19 Unit Price incl. VAT

11

BEARING JACKSHAFT

3514519

Not Available

12

FLANGETTE

5222751

$26,24 Unit Price incl. VAT

13

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

14

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

15

KEY-SQUARE(10)

7721204

$5,76 Unit Price incl. VAT

16

JACKSHAFT ASM BLK. (Incl. 16)

1332141067

Not Available

17

RING RETAINING

7710422

$7,34 Unit Price incl. VAT

18

DISC ASM BRAKE

1910086

Not Available

19

SLEEVE SEAL

5020588

$40,94 Unit Price incl. VAT

20

O-RING

5410613

$3,66 Unit Price incl. VAT

21

DIPSTICK Substituted by 1332143

5431419

$89,24 Unit Price incl. VAT

22

O-RING

5410675

$3,14 Unit Price incl. VAT

23

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

24

NUT FLANGE

7542423

$7,34 Unit Price incl. VAT

25

BOLT(10)

7515428

$9,44 Unit Price incl. VAT

26

DRIVE SHAFT Substituted by 6230083

6230067

Not Available

27

SPROCKET 8T (XLT SKS PT)

5431770

Not Available

27

SPROCKET 9T

5430571

Not Available

28

BUSHING METAL SPEEDO

3280019

$20,99 Unit Price incl. VAT

29

DRIVESHAFT ASM. Substituted by 1590246 (Incl. 28 30 31)

1590230

Not Available

29

DRIVESHAFT ASM 8T Substituted by 1590248 (Incl. 26-28) (PT)

1590244

Not Available

30

BOLT CARRIAGE

7512331

$7,34 Unit Price incl. VAT

31

SQ. KEY SPEEDOMETER (10)

3280017

$26,24 Unit Price incl. VAT

32

BEARING DRIVESHAFT

3514518

Not Available

33

GASKET

5830012

$4,19 Unit Price incl. VAT

34

ADAPTER DRIVE W/ZERK (XLT SKS PT)

3280197

$178,49 Unit Price incl. VAT

34

ADAPTER DRIVE W/ZERK

3280116

$188,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
