DRIVE TRAIN, MAIN GEARCASE FOR TRAIL BOSS 330 INTL - A11EA32FA FROM 2011

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE MOUNTING

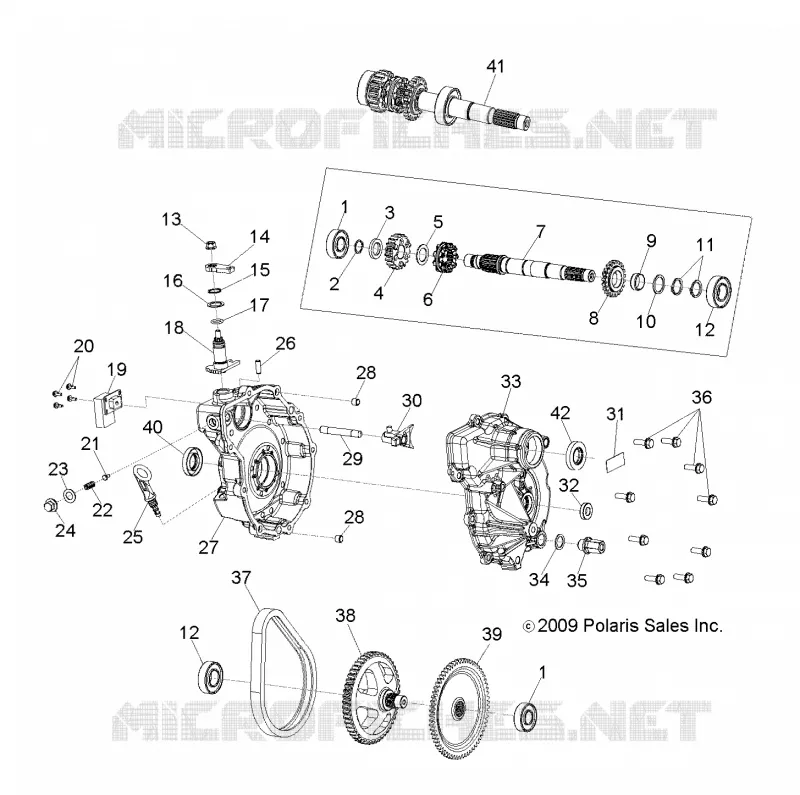

DRIVE TRAIN, MAIN GEARCASE

-

Asm. Gearcase [Incl. All]

1332730

Not Available

1

BEARING BALL 6204 20 X 47 X 14

3233018

$47,24 Unit Price incl. VAT

2

RING RETAINING

3233177

$12,59 Unit Price incl. VAT

3

WASHER-THRUST

3233673

$25,19 Unit Price incl. VAT

4

SPROCKET-19T

3233674

$157,49 Unit Price incl. VAT

5

WASHER

3233010

Not Available

6

Dog Engagement High/Reverse 9 Pt.

3234237

$330,74 Unit Price incl. VAT

7

Shaft Input

3234940

$325,49 Unit Price incl. VAT

8

Gear 21T

3234941

$430,49 Unit Price incl. VAT

9

BEARING NEEDLE 25 X 29 X 10

3233103

$54,59 Unit Price incl. VAT

10

WASHER

3233105

$13,64 Unit Price incl. VAT

11

RING RETAINING BASIC EXTERNAL 0.984

3233106

$10,49 Unit Price incl. VAT

12

BEARING

3233019

$54,59 Unit Price incl. VAT

13

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

14

Bellcrank HLR

3234148

$83,99 Unit Price incl. VAT

15

RING RETAINING BASIC EXTERNAL 0.75

3233045

$9,44 Unit Price incl. VAT

16

WASHER

3233040

$17,84 Unit Price incl. VAT

17

O-RING

3233548

$52,49 Unit Price incl. VAT

18

SHIFT-SHAFT

3233679

$278,24 Unit Price incl. VAT

19

Switch 3 Position

3234002

$262,49 Unit Price incl. VAT

20

SCREW TAPPING TORX PH 11902 X.50

3233749

$10,49 Unit Price incl. VAT

21

BULLET-SHIFTING

3233680

$52,49 Unit Price incl. VAT

22

SPRING-COMPRESSION

3233681

$52,49 Unit Price incl. VAT

23

Washer

3233872

$17,84 Unit Price incl. VAT

24

PLUG DETENT

3233682

$73,49 Unit Price incl. VAT

25

DIPSTICK

3233478

$52,49 Unit Price incl. VAT

26

Tube Vent Hose

3233524

$15,74 Unit Price incl. VAT

27

Gearcase RH

3234049

Not Available

28

PIPE KNOCK

3233529

$16,79 Unit Price incl. VAT

29

SHAFT-SHIFT

3233684

Not Available

30

SHIFT-FORK

3233685

Not Available

31

DECAL-SWITCH

3233636

Not Available

32

Bushing Pivot

3233527

$57,74 Unit Price incl. VAT

33

Gearcase LH

3234048

$656,24 Unit Price incl. VAT

34

Washer

3233035

Not Available

35

PLUG TORQUE STOP

3233687

Not Available

36

SCREW

3233252

$9,44 Unit Price incl. VAT

37

CHAIN SILENT 60P

3233111

$141,74 Unit Price incl. VAT

38

Asm. Sprocket/Output Shaft

3234266

Not Available

39

GEAR 64T

3233690

Not Available

40

SEAL TRIPLE LIP

3233788

$57,74 Unit Price incl. VAT

41

Asm. Shaft Input

3234942

$913,49 Unit Price incl. VAT

42

SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON

3234892

$68,24 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
