1
Engine displacement
600
2
Year
2003
3
Trim
600 XC SP EDGE X F/O
4
Parts Catalog

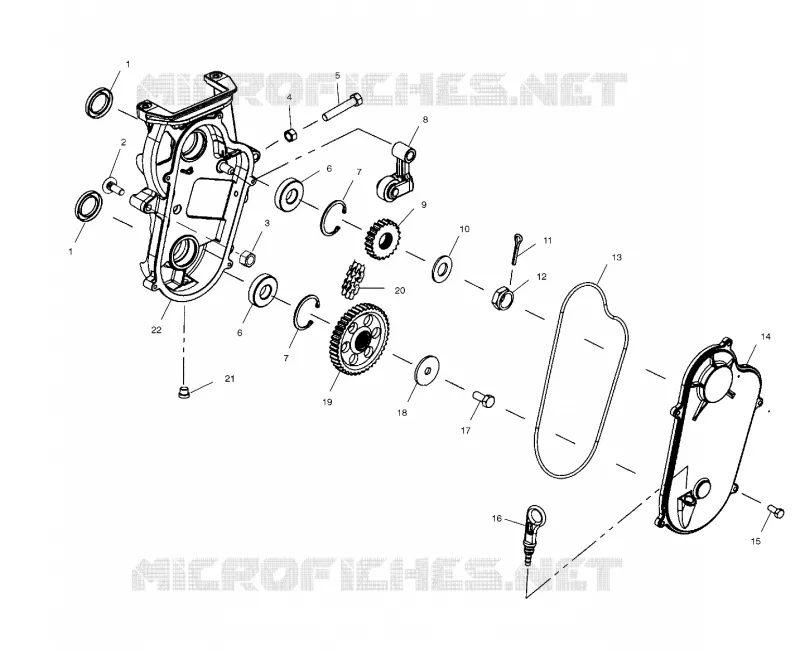

CHAINCASE
5
Parts Diagram
Parts Catalog
TOOL KIT
by
ENGINE MOUNTING
CHAINCASE
1
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
2
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
3
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
4
NUT-CHAIN ADJUSTER 3/8-16
5132237
$17,84 Unit Price incl. VAT
5
SCREW(10)
7512470
Not Available
6
BEARING BALL
3514309
3515910
$30,23 Unit Price incl. VAT
7
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
8
WHEEL C/C IDLER
5630123
Not Available
8
BEARING
3553002
$20,99 Unit Price incl. VAT
8
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
8
TIGHTENER CHAINCASE (Includes the following)
1332213
Not Available
8
BLOCK TIGHTENER W/ANGLE
5630958
Not Available
8
PIN CHAIN TIGHTENER
7662210
Not Available
9
SPROCKET 22T 3/4W [W/1.6IN. COBRA TRACK]
3221098
$73,49 Unit Price incl. VAT
9
SPROCKET 23T 3/4W [W/1.352IN. COBRA TRACK]
3221099
$83,99 Unit Price incl. VAT
10
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
11
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
12
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
13
GASKET O-RING CHAINCASE
5411497
$36,74 Unit Price incl. VAT
14
CVR CHNCASE 7.92 CD ALUM
5132368
$238,34 Unit Price incl. VAT
15
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
16
ASM-DIPSTICK W/MAGNET EDGE
1332250
$73,49 Unit Price incl. VAT
17
SCR-5/16-18 3/4 HXHD/NYL GR8-P
7517979
$7,34 Unit Price incl. VAT
18
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
19
SPROCKET 40T [W/1.352IN. COBRA AND 2.0 SERIES 4 TRACK]
3222099
3225069
$73,49 Unit Price incl. VAT
19
SPROCKET-39T 3/4W 15T HYVO PM
3222108
3225070
$89,24 Unit Price incl. VAT
20
CHAIN 74P 3/4W
3221109
$262,49 Unit Price incl. VAT
21
PLUG
7052115
$10,49 Unit Price incl. VAT
22
CHAINCASE-7.92 CD ALUM
5132773
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
