1
Engine displacement
500
2
Year
2000
3
Trim
SPORTSMAN 500 - A00CH50AF
4
Parts Catalog

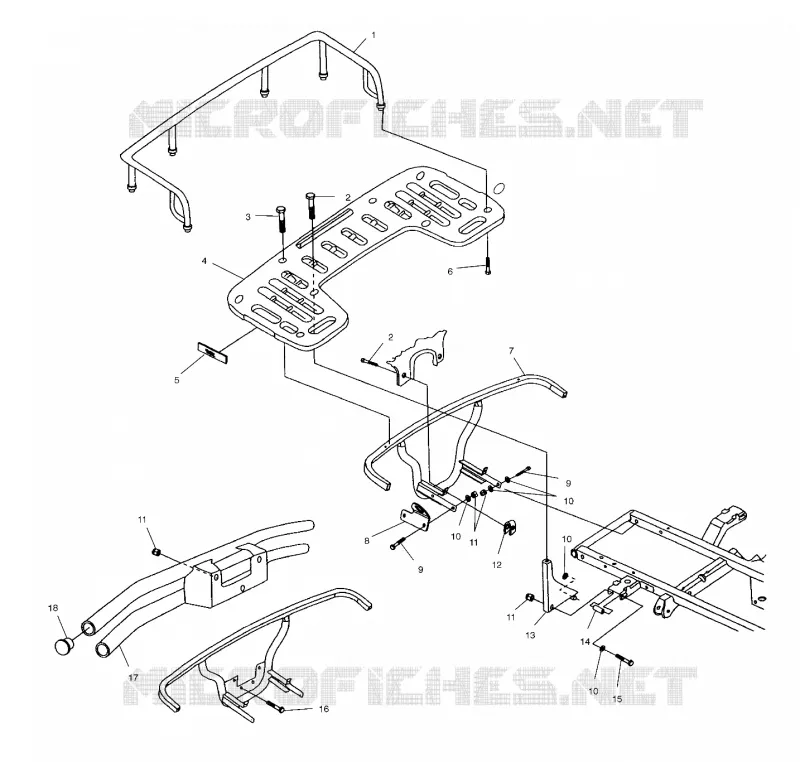

REAR RACK MOUNTING
5
Parts Diagram
Parts Catalog
CABIN
by
FRONT RACK BUMPER MOUNTING
REAR RACK MOUNTING
1
Kit Rack Extender Rear [Incl. 13]
2871501
Not Available
2
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
3
Screw (If built before 7/23/01)
7517686
$3,14 Unit Price incl. VAT
4
Asm. Rack Rear [Incl. Ref. 5 and Warning Decal]
2670174070
Not Available
5
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
6
Screw Flange
7517208
$3,66 Unit Price incl. VAT
7
RACK REAR SUPPORT RSE BLK
1012894067
Not Available
7
SUPPORT R.RACK (500) BLK
1040490067
Not Available
8
BRKT SILENCER FRAME BLK
5241663067
5241663
$19,94 Unit Price incl. VAT
9
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
10
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
11
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
12
NUT-CHIMNEY 1/4-20 GR-5
7670096
$3,14 Unit Price incl. VAT
13
MNT LH.FRT R.RACK BLK
1040524067
Not Available
13
MNT RH.FRT R.RACK BLK.
1040525067
Not Available
14
SPACER
5333332067
$10,70 Unit Price incl. VAT
15
SCREW
7515385
$10,49 Unit Price incl. VAT
16
BOLT(10)
7515321
Not Available
17
BUMPER-REAR RSV BLK
5243378067
$238,34 Unit Price incl. VAT
18
Cap End Bumper (AC)(AD)
5433305
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
