ENGINE, CARBURETOR, UPPER FOR SPORTSMAN TOURING 500 HO - A13DH50AX/AZ FROM 2013

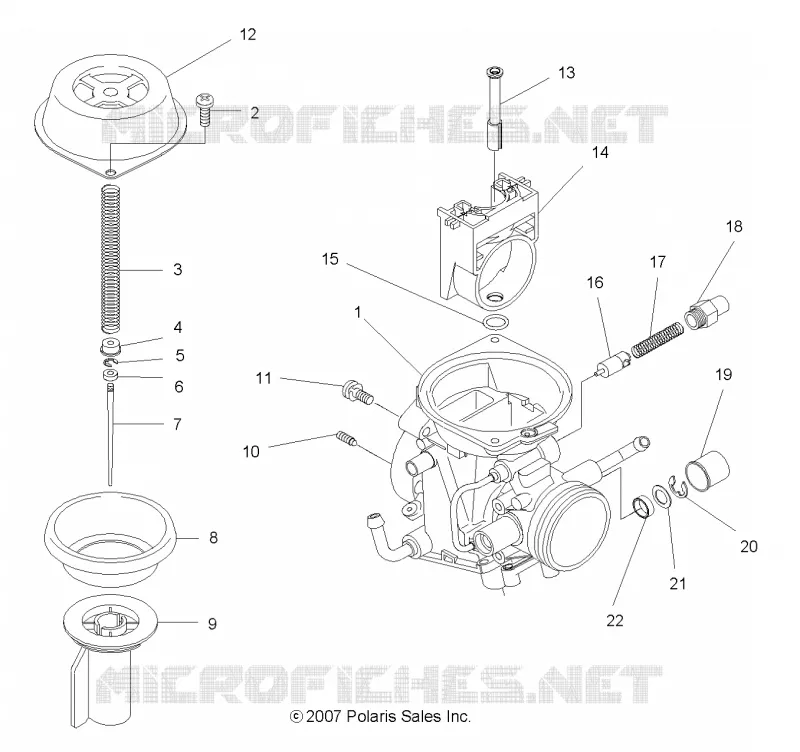

ENGINE, CARBURETOR, UPPER

1

Asm. Carburetor [Incl. All less 11]

3131740

$1 065,74 Unit Price incl. VAT

2

SCREW

3130821

$13,64 Unit Price incl. VAT

3

SPRING

3130911

$20,99 Unit Price incl. VAT

4

RING

3130913

$10,49 Unit Price incl. VAT

5

RING #E#

3130908

$11,54 Unit Price incl. VAT

6

Ring

3130915

$10,49 Unit Price incl. VAT

7

NEEDLE-JET

3131292

$83,99 Unit Price incl. VAT

8

DIAPHRAGM

3130910

$125,99 Unit Price incl. VAT

9

VALVE PISTON

3130912

$120,74 Unit Price incl. VAT

10

Jet Air

3130619

$15,74 Unit Price incl. VAT

11

ASM. SCREW AND WASHER

3085698

$13,64 Unit Price incl. VAT

12

COVER DIAPHRAGM

3130914

$89,24 Unit Price incl. VAT

13

Jet Needle

3131305

$89,24 Unit Price incl. VAT

14

BLOCK JET

3130909

$73,49 Unit Price incl. VAT

15

O-Ring

3130916

$8,39 Unit Price incl. VAT

16

Asm. Plunger

3131395

$73,49 Unit Price incl. VAT

17

SPRING

3130538

$10,49 Unit Price incl. VAT

18

Holder Guide

3131396

$27,29 Unit Price incl. VAT

19

CAP

3130519

$19,94 Unit Price incl. VAT

20

E-Ring

3130518

$3,14 Unit Price incl. VAT

21

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

22

SEAL

3130515

$20,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
