1
Engine displacement
700
2
Year
2009
3
Trim
RANGER 4X4 700 EFI ALL OPTIONS - R09HH68/HY68
4
Parts Catalog
REAR SUSPENSION
5

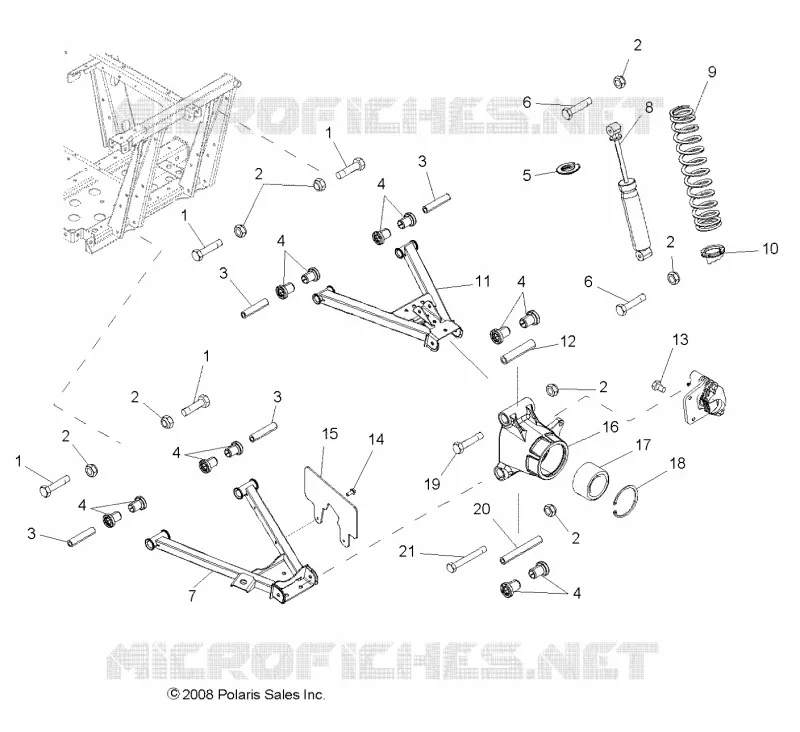

Parts Diagram
Parts Catalog
FRONT SUSPENSION SHOCK
by
REAR SUSPENSION STABILIZER BAR
REAR SUSPENSION
1
1
1
1
2
2
2
2
2
2
2
3
3
3
3
4
4
4
4
4
4
5
5
6
6
7
7
7
7
8
8
9
9
9
10
11
11
12
13
14
15
16
16
17
18
19
20
21
1
Bolt
7518560
7519043
$17,84 Unit Price incl. VAT
2
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
3
Tube Pivot
5335448
5137591
$10,49 Unit Price incl. VAT
4
Bushing A-Arm Short
5434548
5439270
$4,19 Unit Price incl. VAT
5
RETAINER-SPRING STEEL
5252916
$120,74 Unit Price incl. VAT
5
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
6
SCR-HXFL-M10X1.25X60 8.8 ZOD
7518563
$5,76 Unit Price incl. VAT
7
Arm Control Lower Black RH [AB][AG][AH][AL][AM][AR][AS][AV][AZ]
1016351067
Not Available
7
Arm Control Lower Silver LH [AN]
1016350385
$165,36 Unit Price incl. VAT
7
Arm Control Lower Silver RH [AN]
1016351385
$158,01 Unit Price incl. VAT
7
Arm Control Lower Black LH [AB][AG][AH][AL][AM][AR][AS][AV][AZ]
1016350067
Not Available
8
Shock Rear
7043491
$167,99 Unit Price incl. VAT
8
Shock Rear [AN]
7043434
$892,49 Unit Price incl. VAT
9
Spring Rear Silver [AN]
7043438385
$115,49 Unit Price incl. VAT
9
Spring Silver (AB)
7042334385
$309,74 Unit Price incl. VAT
9
Spring Black (AA)
7042334067
$283,49 Unit Price incl. VAT
10
Cam Adjusting Spring
5630551
$68,24 Unit Price incl. VAT
11
Arm Control Upper Black [AG][AH][AL][AR][AZ]
1016730067
Not Available
11
Arm Control Upper Silver [AC]
1016730385
Not Available
12
Shaft A-Arm Upper Rear
5136580
5137592
$12,59 Unit Price incl. VAT
13
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
14
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
15
Shield CV Rear Black
5437816070
Not Available
16
Carrier Bearing Wheel RH
5136543
$121,79 Unit Price incl. VAT
16
Carrier Bearing Wheel LH
5136544
$121,79 Unit Price incl. VAT
17
Bearing Ball
3585502
3514635
$73,49 Unit Price incl. VAT
18
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
19
SCR-HXFL-M10X1.25X115 8.8 ZOD
7518566
$13,64 Unit Price incl. VAT
20
Shaft A-Arm Lower Rear
5136581
5137593
$12,59 Unit Price incl. VAT
21
BOLT FLANGED
7518562
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
