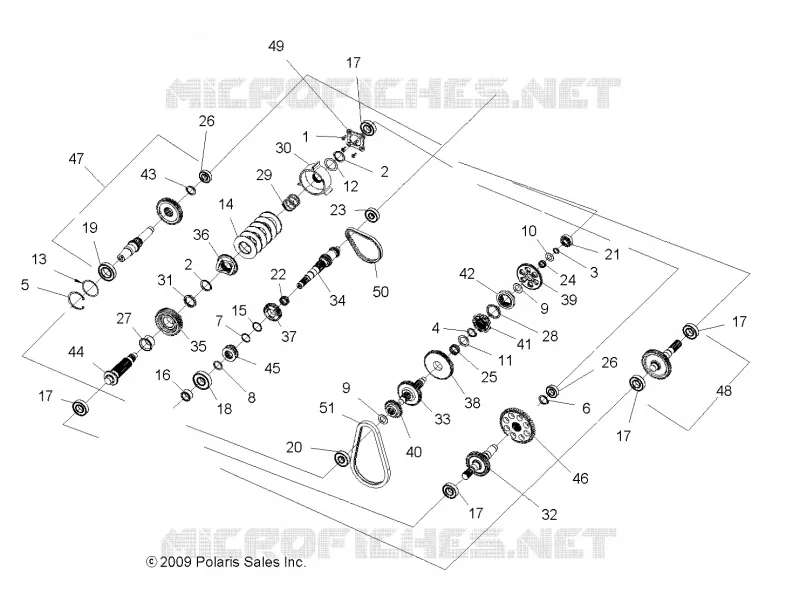

DRIVE TRAIN, MAIN GEARCASE INTERNALS FOR SPORTSMAN TOURING EPS 550 - A10DX55AL/AF FROM 2010

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, MAIN GEARCASE INTERNALS

-

Asm. Transmission Drive System

1332786

Not Available

1

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$40,94 Unit Price incl. VAT

2

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

3

RING RETAINING EXTERNAL SHR-66

3234318

$5,76 Unit Price incl. VAT

4

RING RETAINING BASIC EXTERNA

3234327

$13,64 Unit Price incl. VAT

5

RING RETAINING BASIC INTERNAL 62MM

3234741

$17,84 Unit Price incl. VAT

6

RING RETAINING IRR 7200-118

3233699

$13,64 Unit Price incl. VAT

7

RING RETAINING EXTERNAL USC-112

3234641

$26,24 Unit Price incl. VAT

8

WASHER THRUST 1.300 X 0.995 X 0.065

3234248

$17,84 Unit Price incl. VAT

9

SHIM 1.35 OD X 0.818 ID

3234643

$68,24 Unit Price incl. VAT

10

SHIM 1.17 OD X 0.675 ID

3234644

$26,24 Unit Price incl. VAT

11

WASHER THRUST 1.568 OD X .1.110 ID

3234646

$41,99 Unit Price incl. VAT

12

Kit Shim

2204264

Not Available

13

KIT GTO PRIMARY SHIM PACK

2204268

$68,24 Unit Price incl. VAT

14

Washer Belleville

3234648

$52,49 Unit Price incl. VAT

15

WASHER THRUST Ã¯Â¿Â½ 33 X Ã¯Â¿Â½ 29 X 1.5

3234757

$20,99 Unit Price incl. VAT

16

Collar

3234758

$167,99 Unit Price incl. VAT

17

BEARING

3233019

$54,59 Unit Price incl. VAT

18

BEARING BALL 6305 C3 25 X 62 X 17

3233020

$80,84 Unit Price incl. VAT

19

BEARING BALL 6007 C3 35 X 62 X 14

3233265

$68,24 Unit Price incl. VAT

20

BEARING BALL 6304 C3 20X52X15

3234651

$27,29 Unit Price incl. VAT

21

BEARING BALL 6203 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

22

BEARING NEEDLE SPLIT CAGE

3234759

$27,29 Unit Price incl. VAT

23

BEARING BALL 6303 17 X 47 X 14

3234652

$27,29 Unit Price incl. VAT

24

BEARING NEEDLE CAGE ASSY 20 X 24 X 10

3234655

$27,29 Unit Price incl. VAT

25

BEARING NEEDLE 28 X 33 X 13

3234656

$27,29 Unit Price incl. VAT

26

Bearing Ball

3234657

$34,64 Unit Price incl. VAT

27

Bearing Flange

3234684

$34,64 Unit Price incl. VAT

28

SPRING WAVE 1.60 ID X 0.375

3234688

$19,94 Unit Price incl. VAT

29

Spring Compression

3234999

Not Available

30

Cup Belleville

3234696

$178,49 Unit Price incl. VAT

31

Spacer Compensator Thrust

3234697

Not Available

32

Shaft Output

3234997

$173,24 Unit Price incl. VAT

33

Shaft Reverse 56T [Used w/1332473]

3234736

$482,99 Unit Price incl. VAT

34

Shaft Input 27T

3234761

$482,99 Unit Price incl. VAT

35

Gear Compensator

3234762

Not Available

36

Cam Compensator

3234705

Not Available

37

Gear 39T [Used w/1332473]

3234770

Not Available

38

GEAR 67T

3234706

$173,24 Unit Price incl. VAT

39

SPROCKET 48T 6-FACE

3234707

$68,24 Unit Price incl. VAT

40

SPROCKET 23T

3234708

$73,49 Unit Price incl. VAT

41

DOG ENGAGEMENT GTO LOW

3234718

$346,49 Unit Price incl. VAT

42

Dog Engagement Rev/Low

3234719

$335,99 Unit Price incl. VAT

43

Ring Retaining External [Built 2/12/10 and Before]

3234640

Not Available

44

Shaft Compensator

3234721

$577,49 Unit Price incl. VAT

45

Dog Engagement High

3234764

$309,74 Unit Price incl. VAT

46

SPROCKET 44 TOOTH

3234998

$125,99 Unit Price incl. VAT

47

Subasm. Primary Shaft

3234768

Not Available

48

SUBASSY OUTPUT FRONT W/BEARINGS (#27)

3234723

$414,74 Unit Price incl. VAT

49

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$40,94 Unit Price incl. VAT

50

CHAIN SILENT TYPE 101 .25P X .40W X 58L

3234737

$314,99 Unit Price incl. VAT

51

CHAIN SILENT 0.5 X .375P X 64P

3234738

$456,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
