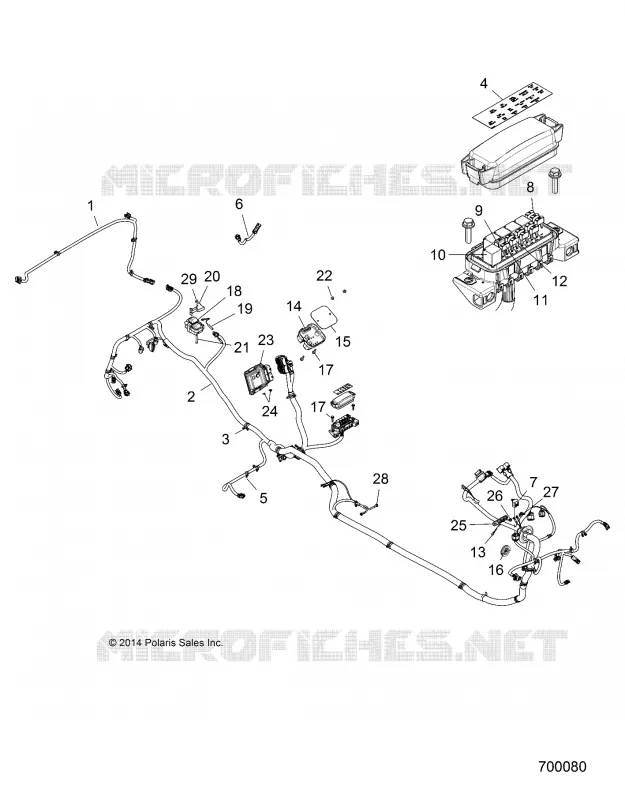

WIRE HARNESS FOR RZR XP 4 1000 FROM 2015

WIRE HARNESS

1

HARNESS BOX

2412884

$115,49 Unit Price incl. VAT

2

HARNESS CHASSIS [INCL. 3-5 7-13]

2412850

$1 994,99 Unit Price incl. VAT

3

STRAP-PANDUIT DBL LOOP 260MM

7081916

$9,44 Unit Price incl. VAT

4

LABEL-FUSE BOX

7180894

Not Available

5

CLIP-ROUTING

7081496

$9,44 Unit Price incl. VAT

6

WIRE THERMISTER LEAD

4014319

$152,24 Unit Price incl. VAT

7

COVER - DIAGNOSTIC W/ CLIP

4012170

$16,79 Unit Price incl. VAT

8

FUSE-MINI BLADE 15 AMP

2410280

$15,74 Unit Price incl. VAT

9

BREAKER-CIRCUIT 20 AMP

4011372

$83,99 Unit Price incl. VAT

10

RELAY-SPST SERIES 303 SEALED

4011283

$68,24 Unit Price incl. VAT

11

FUSE-PARK 20 AMP

2434017

$15,74 Unit Price incl. VAT

12

FUSE-IGNITION 10 AMP

2434016

$10,49 Unit Price incl. VAT

13

LED PANEL MOUNT not in 2413240 or 2413232

2412443

$99,74 Unit Price incl. VAT

14

REGULATOR

4014029

$535,49 Unit Price incl. VAT

15

PLATE HEAT SINK REGULATOR

5254970

Not Available

16

GROMMET ELECTRICAL CAB

5414440

$13,64 Unit Price incl. VAT

17

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$2,09 Unit Price incl. VAT

18

COIL-EFI

4010425

$451,49 Unit Price incl. VAT

19

JUMPER COIL GROUND

4014422

$62,99 Unit Price incl. VAT

20

SPACER-COIL MOUNT

5436577

$7,34 Unit Price incl. VAT

21

SCR-M6X1.0X40 HX/SOC/CP-B

7518780

$7,34 Unit Price incl. VAT

22

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

23

ECM-HARD ME17 2CYL 250K

4014125

$1 123,49 Unit Price incl. VAT

24

SCR-#10X1/2-HI/LO-PN-T25 TRX-M

7519091

$6,29 Unit Price incl. VAT

25

BLOCK TERMINAL 3 POST

4011892

$62,99 Unit Price incl. VAT

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$2,09 Unit Price incl. VAT

27

NUTS KEPS 10-32

7547341

$1,56 Unit Price incl. VAT

28

GROMMET ELEC LED [USED W/2635161]

5414942

$7,34 Unit Price incl. VAT

29

NUT-M6 FLANGE NYLOC

7547274

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
