1
Engine displacement
650
2
Year
1992
3
Trim
650 RXL SKS - 0920568
4
Parts Catalog

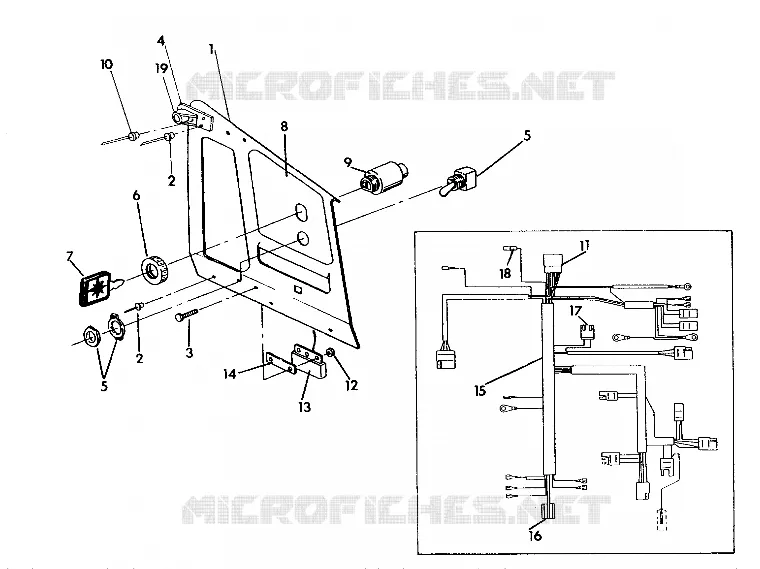

CONSOLE RXL/RXL SKS (4921322132013A)
5
Parts Diagram
Parts Catalog
HOOD
by
BATTERY BOX ASSEMBLY RXL/RXL SKS (4921322132014A)
CONSOLE RXL/RXL SKS (4921322132013A)
1
CONSOLE BLK EFI(SCAND.) [No Longer Available]
5222759067
Not Available
2
RIVET Substituted by 7661638
7661625
7661638
$2,09 Unit Price incl. VAT
3
BOLT(10)
7512031
$3,98 Unit Price incl. VAT
4
BRKT ROPE GUIDE Substituted by 5222682-067
5222682
Not Available
5
SW HEATER HI-LOW (650 & 500 Classic Only)
4110077
Not Available
6
NUT IGN.SWITCH(10)
7543101
Not Available
7
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
8
DECAL CONSOLE [No Longer Available]
7073073
Not Available
9
SWITCH IGN.(E/S) Substituted by 2200358 *
4110110
2205055
$141,74 Unit Price incl. VAT
10
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
11
HOUSING W/RECEPTACLES
2200039
Not Available
12
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
13
REGULATOR VOLTAGE
4060092
2203873
$188,99 Unit Price incl. VAT
14
HEAT SINK
5210650
Not Available
15
HARNESS WIRE
2460359
Not Available
16
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Not Available
17
TERMINAL
4020113
Not Available
17
CONNECTOR BRAKE SWITCH
4020112
Not Available
18
CONNECTOR TACH.
2200094
Not Available
19
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
