1
Engine displacement
500
2
Year
1998
3
Trim
SPORTSMAN 500 - W98CH50AF
4
Parts Catalog

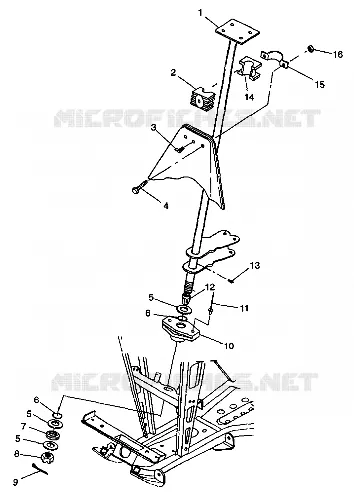

STEERING POST
5
Parts Diagram
Parts Catalog
CONTROLS
by
DRIVE CLUTCH
STEERING POST
1
POST STRG.ASM. (Incl. 9 10)
1843051
Not Available
2
BUSHING STRG.CONSOLE Substituted by 5433415
5431573
5433415
$16,79 Unit Price incl. VAT
3
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
4
BOLT(10)
7515321
Not Available
5
BUSHING(10)
7555878
$13,64 Unit Price incl. VAT
6
O-Ring
5410772
Not Available
7
SPACER STRG.POST
5431571
Not Available
8
NUT HEX SLOTTED(10)
7543203
$17,84 Unit Price incl. VAT
9
Pin Cotter
7661633
Not Available
10
BUSHING LOWER STRG.
5431570
Not Available
11
RIVET MONOBOLT (50)
7661632
$9,44 Unit Price incl. VAT
12
PLUG GREASE STRG.
5431574
Not Available
13
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
14
BUSHING STRG.CONSOLE Substituted by 5433416
5431572
5433416
$16,79 Unit Price incl. VAT
15
Bracket Steering Post
5222999067
5257028
$62,99 Unit Price incl. VAT
16
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
