DRIVE TRAIN, MAIN GEARCASE FOR RANGER 6X6 800 EFI - R11HR76AG/AR FROM 2011

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MID GEARCASE

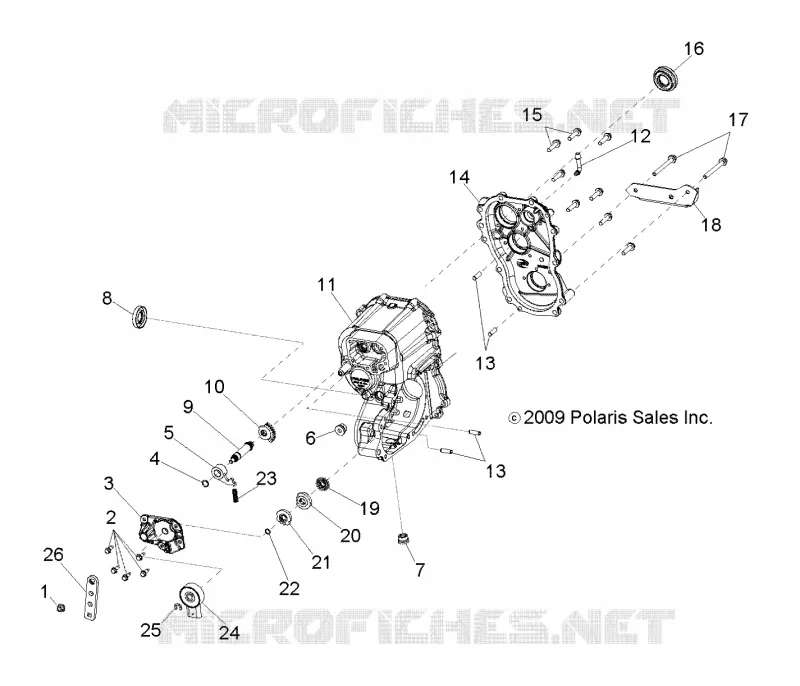

DRIVE TRAIN, MAIN GEARCASE

-

Asm. Main Gearcase

1332702

$4 866,74 Unit Price incl. VAT

1

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

2

SCREW

3233826

$17,84 Unit Price incl. VAT

3

COVER SECTOR GEARS MACHINED

3234188

$209,99 Unit Price incl. VAT

4

O-RING -014 VITON

3233828

$12,59 Unit Price incl. VAT

5

PAWL DETENT

3233829

$68,24 Unit Price incl. VAT

6

PLUG 3/4-16 41775 INTERNAL HEX

3233794

$31,49 Unit Price incl. VAT

7

MAGNETIC PLUG 3/4-16 INTERNAL HEX

3234529

$31,49 Unit Price incl. VAT

8

SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON

3234892

$68,24 Unit Price incl. VAT

9

SHAFT SHIFT

3233831

$115,49 Unit Price incl. VAT

10

GEAR-SECTOR 31T

3233832

$68,24 Unit Price incl. VAT

11

GEARCASE MAIN

3234676

Not Available

12

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

13

PIN DOWEL

3233247

$13,64 Unit Price incl. VAT

14

COVER LH

3234683

$556,49 Unit Price incl. VAT

15

SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$13,64 Unit Price incl. VAT

16

SEAL TRIPLE LIP VITON HELIX 30 X 47

3234851

$68,24 Unit Price incl. VAT

17

SCREW

3234042

$13,64 Unit Price incl. VAT

18

BRACKET TRANSMISSION MOUNT

5252611

$52,49 Unit Price incl. VAT

19

GEAR SECTOR 16T

3233839

$68,24 Unit Price incl. VAT

20

DISC LOCKOUT

3233838

$52,49 Unit Price incl. VAT

21

STAR DETENT

3233837

$62,99 Unit Price incl. VAT

22

O-RING -012 VITON

3233836

$12,59 Unit Price incl. VAT

23

SPRING COMPRESSION 0.36 O.D. X 1.125

3233830

$19,94 Unit Price incl. VAT

24

SWITCH ROTARY 6-PIN ITW [GEAR POSITION]

3233835

$225,74 Unit Price incl. VAT

25

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

26

BELLCRANK

3233825

$52,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
