1
Engine displacement
500
2
Year
1995
3
Trim
500 EFI SKS PDLTRK - 0952974
4
Parts Catalog
WATER PUMP 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND EUR (4929052905C012)
5
Parts Diagram
Parts Catalog
OIL TANK AIR BOX 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905C007)
by
PISTON CRANKSHAFT 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 09529 (4929052905C013)

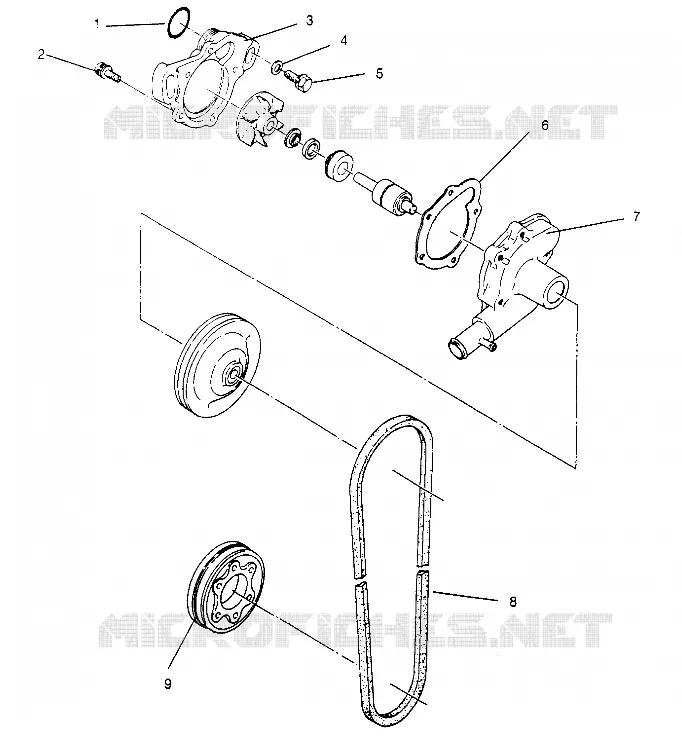

WATER PUMP 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND EUR (4929052905C012)
1
O RING
3082746
Not Available
2
SCREW&WASHER ASM.(10)
3084221
$4,19 Unit Price incl. VAT
3
CASING PUMP 2
3083683
Not Available
4
WASHER
3082505
Not Available
5
BOLT&WASHER ASM.
3083370
Not Available
6
GASKET WATER PUMP
3083367
Not Available
7
PUMP WATER (Incl. 2)
3084345
Not Available
8
BELT
3082747
$102,47 Unit Price incl. VAT
9
PULLEY (DRIVE)
3083371
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
