1
Engine displacement
0
2
Year
1992
3
Trim
SWE RXL SKS - S920568
4
Parts Catalog
CYLINDER MANIFOLD RXL/RXL SKS (4921322132038A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH RXL/RXL SKS (4921322132030A)
by
PISTON CRANKSHAFT RXL/RXL SKS (4921322132039A)

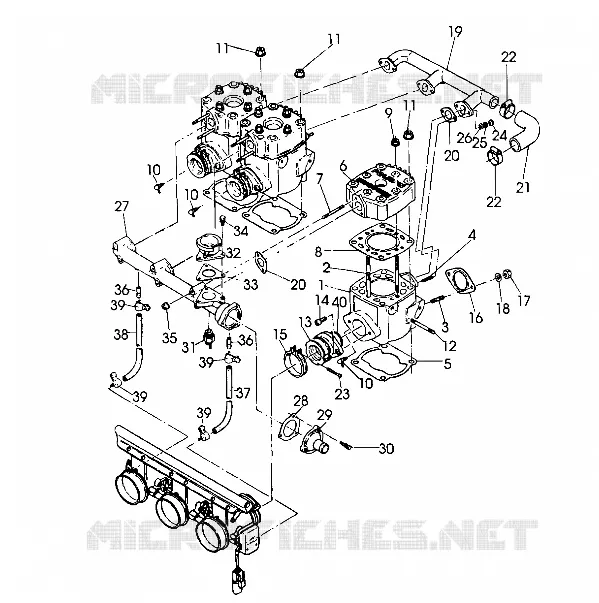

CYLINDER MANIFOLD RXL/RXL SKS (4921322132038A)
1
CYLINDER (Incl. 1-4 10)
3084320
Not Available
2
STUD
3083392
Not Available
3
STUD (10)
3080016
$9,23 Unit Price incl. VAT
4
STUD
3082931
Not Available
5
GASKET CYLINDER Substituted by 3084614
3084041
Not Available
6
HEAD CYLINDER
3084042
$570,14 Unit Price incl. VAT
7
STUD
3082934
$18,89 Unit Price incl. VAT
8
GASKET HEAD Substituted by 3084376
3083852
Not Available
9
NUT-FLANGE(10)
3082910
Not Available
10
VALVE CHECK Substituted by 3086785
3083337
7051020
$68,24 Unit Price incl. VAT
11
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
12
STUD
3083360
Not Available
13
ADAPTER
3084043
Not Available
14
BOLT
3084044
Not Available
15
BAND ASM. (Incl. Bolt)
3084045
$47,24 Unit Price incl. VAT
16
GASKET EXHAUST Substituted by 3083770
3084046
Not Available
17
NUT(10)
3080285
Not Available
18
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
19
MANIFOLD WATER INLET
3083397
Not Available
20
GASKET(10)
3082937
Not Available
21
HOSE-MAIN
3082938
Not Available
22
CLAMP HOSE
3083394
Not Available
23
SCREW
3081497
$4,19 Unit Price incl. VAT
24
NUT(10)
3082939
Not Available
25
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
26
WASHER(10)
3080078
Not Available
27
OUTLET W.MANIFOLD
3084047
Not Available
28
GASKET THERMOSTAT
3082944
Not Available
29
COVER CASE THERMOSTAT
3084248
Not Available
30
ASM. BOLT AND WASHER
3083730
$9,44 Unit Price incl. VAT
31
SWITCH THERMAL(93 DEG.C.)
3083055
Not Available
32
NECK FILLER
3083398
Not Available
33
GASKET FILLER NECK
3083340
Not Available
34
BOLT&WASHER ASM.
3083361
Not Available
35
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
36
PIPE WATER (Water)
3084048
Not Available
37
HOSE WATER (Water)
3084049
Not Available
38
HOSE #2 (WATER) (Water)
3084050
Not Available
39
CLAMP
3084051
Not Available
40
O-RING
3084229
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
