1
Engine displacement
900
2
Year
2013
3
Trim
RANGER CREW 900 DIESEL - R13WH90DG
4
Parts Catalog
WHEELS, REAR
5
Parts Diagram
Parts Catalog
WHEELS, FRONT
by
LONG BLOCK

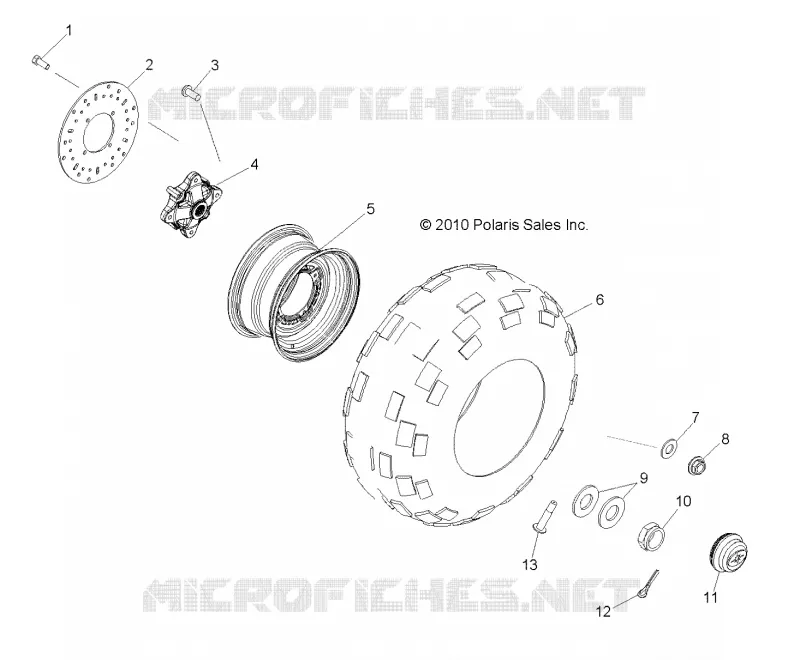

WHEELS, REAR
1
2
3
4
5
6
7
8
9
10
11
12
13
1
SCR-HH-3/8-16X0.75 GR5 ZY3
7518903
$7,34 Unit Price incl. VAT
2
DISC-BRAKE REAR 8.625X.188
5248250
$141,74 Unit Price incl. VAT
3
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
4
HUB-WHEEL REAR MACH BLK
5135113067
5143629-067
$89,24 Unit Price incl. VAT
5
Rim Rear (If built after 1/19/04)
1520797067
1523450-067
$225,21 Unit Price incl. VAT
6
TIRE-RR 26X11R12 PXT 16PSI
5413370
5419043
$306,38 Unit Price incl. VAT
7
WASHER-.385X.88X.075 FL-Y THR
7556242
$4,19 Unit Price incl. VAT
8
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
9
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
10
NUT-M18X1.5 CASTLE ZINC/YELLOW
7547337
$3,66 Unit Price incl. VAT
11
CAP-HUB DUST
5413976
$8,39 Unit Price incl. VAT
12
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
13
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
